NEMA23 Stepper Motor 19Kgcm Torque with TB6600 Stepper Drive
Non-returnable
₹1,750.00 (Excluding GST)
Out of stock

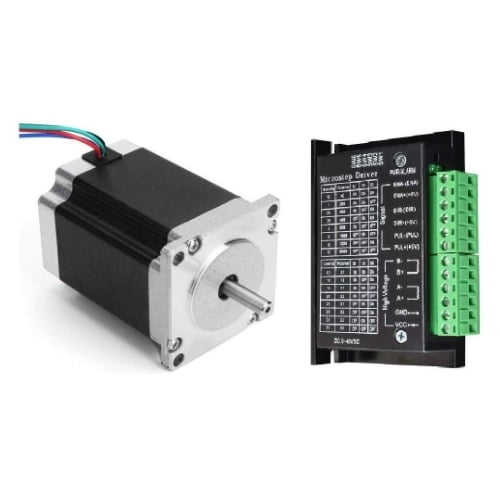

Nema23 Stepper Motor 19Kgcm Torque with TB6600 Stepper Drive
Product Details
Motor features:
Step Angle: 1.8 Degree
Configuration: 4 wire stepper motor
Holding Torque: 19kgcm bipolar
Rated voltage: 3.2VDC
Phase current: 2.8Amp
Resistance/phase: 1.13E
Inductance/Phase: 5.6mH
Rotor inertia: 480 gcm2
Detent torque: 0.68kgcm
Length (L): 76mm
Shaft Dia: 6.35mm
Shaft Length: 22mm
Weight: 1030 grams
Motor drive specifications:
DC 9-42V power supply, 12-24V power supply the best
Control signal input voltage 3.3-24V
Segmentation accuracy 1-32 subdivision optional
Output peak current 4.0A
Input signal high-speed optocoupler isolation
Built-in temperature protection and over-current protection
Automatic half-flow to reduce heat
Subdivision settings:
Set the pulse with 1, 2 and 3 DIP switches as follows:
| Subdivision | Pulse / circle | S1 | S2 | S3 |
| NC | NC | ON | ON | ON |
| 1 | 200 | ON | ON | OFF |
| 2/A | 400 | ON | OFF | ON |
| 2/B | 400 | OFF | ON | ON |
| 4 | 800 | ON | OFF | OFF |
| 8 | 1600 | OFF | ON | OFF |
| 16 | 3200 | OFF | OFF | ON |
| 32 | 6400 | OFF | OFF | OFF |
Current setting:
Use 4, 5, and 6 DIP switches to set the running current as follows:
| Average current | Peak current | S4 | S5 | S6 |
| 0.5 | 0.7 | ON | ON | ON |
| 1.0 | 1.2 | ON | OFF | ON |
| 1.5 | 1.7 | ON | ON | OFF |
| 2.0 | 2.2 | ON | OFF | OFF |
| 2.5 | 2.7 | OFF | ON | ON |
| 2.8 | 2.9 | OFF | OFF | ON |
| 3.0 | 3.2 | OFF | ON | OFF |
| 3.5 | 4.0 | OFF | OFF | OFF |
