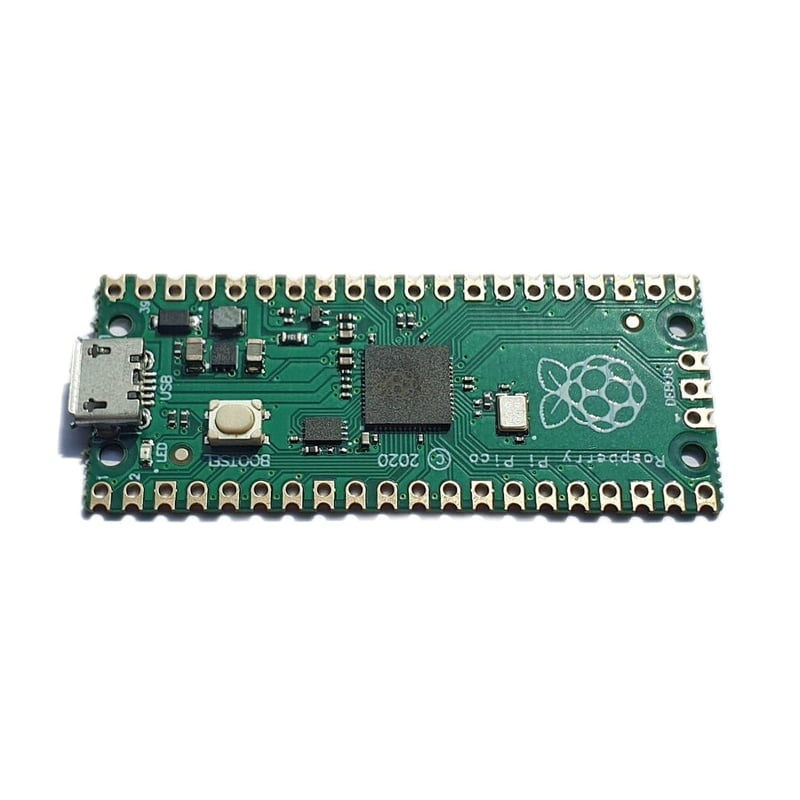

Raspberry Pi Pico
₹280.00
RP2040 Raspberry Pi Pico - ARM® Cortex®-M0+ MCU 32-Bit Embedded Evaluation Board, Raspberry Pi
Product Details
Designed by Raspberry Pi, RP2040 features a dual-core Arm Cortex-M0+ processor with 264kB internal RAM and support for up to 16MB of off-chip flash. A wide range of flexible I/O options includes I2C, SPI, and - uniquely - Programmable I/O (PIO). These support endless possible applications for this small and affordable package.
| Manufacturer Part Number: | Raspberry Pi Pico |
| Manufacturer: | Raspberry Pi |
| CPU: | Dual-core Arm Cortex-M0+ @ 133MHz |
| Memory: | 264KB on-chip SRAM; 2MB on-board QSPI Flash |
| Interfacing: | 26 GPIO pins, including 3 analogue inputs |
| Peripherals: | 2 x UART; 2 x SPI controllers; 2 x I2C controllers; 16 x PWM channels; 1 x USB 1.1 controller and PHY, with host and device support; 8 x PIO state machines |
| Input power: | 1.8–5.5V DC |
| Operating temperature: | -20C to +85C |
Specification
- 21 mm x 51 mm form factor
- RP2040 microcontroller chip designed by Raspberry Pi in the UK
- Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
- 264KB on-chip SRAM
- 2MB on-board QSPI Flash
- 26 multifunction GPIO pins, including 3 analogue inputs
- 2 x UART, 2 x SPI controllers, 2 x I2C controllers, 16 x PWM channels
- 1 x USB 1.1 controller and PHY, with host and device support
- 8 x Programmable I/O (PIO) state machines for custom peripheral support
- Supported input power 1.8-5.5V DC
- Operating temperature -20C to +85C
- Castellated module allows soldering direct to carrier boards
- Drag-and-drop programming using mass storage over USB
- Low-power sleep and dormant modes
- Accurate on-chip clock
- Temperature sensor
- Accelerated integer and floating-point libraries on-chip
