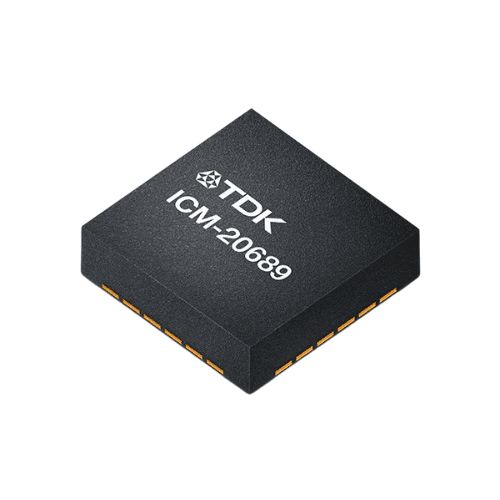

ICM-20689
Non-returnable
₹429.00
Accelerometer, Gyroscope, Temperature, 6 Axis Sensor I2C, SPI Output, TDK INVENSENSE
Product Details
| Manufacturer Part Number: | ICM-20689 |
| Manufacturer: | TDK InvenSense |
| Sensor Type: | Accelerometer, Gyroscope, Temperature, 6 Axis |
| Output Type: | I2C, SPI |
| VDD Power Supply: | 1.71V to 3.45V |
| Gyro FSR: | ±250/500/1000/2000 |
| Gyro Sensitivity Error: | ±2% |
| Gyro Rate Noise: | 0.006dps/√Hz |
| Accel FSR: | ±2/4/8/16 |
| Accel Sensitivity Error: | ±2% |
| Accel Noise: | 150μg/√Hz |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 24-Pin QFN |
Applications:
- Mobile phones and tablets
- Drones
- Motion-based game controllers
- 3D remote controls for Internet connected DTVs and set top boxes, 3D mice
- Wearable sensors for health, fitness and sports
Features:
- User-programmable interrupts
- Wake-on-motion interrupt for low power operation of applications processor
- 4K-byte FIFO buffer enables the applications processor to read the data in bursts
- On-Chip 16-bit ADCs and Programmable Filters
- Host interface: 8 MHz SPI or 400 kHz Fast Mode I2C
- Digital-output temperature sensor
- VDD operating range of 1.71 V to 3.45 V
- MEMS structure hermetically sealed and bonded at wafer level
- RoHS and Green compliant
