Stepper Motor Driver TB6600 4.0A 42V
Non-returnable
₹299.00

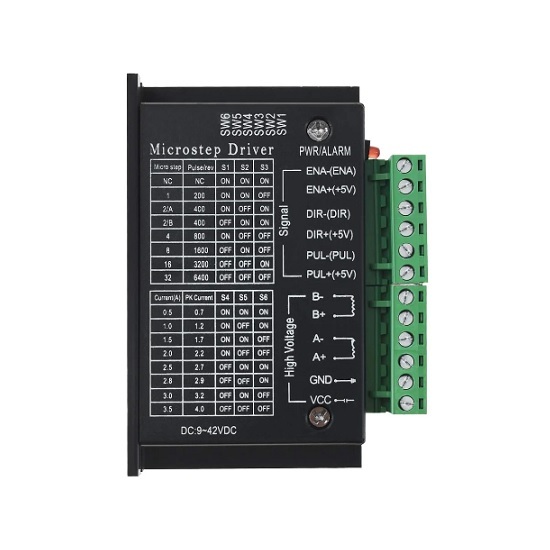

TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis
Product Details
| Input Current: | 0 to 5A |
| Output Current: | 0.5 to 4.0A |
| Voltage Rating: | 9 to 42V |
| Control Signal: | 3.3V to 24V |
| Power (MAX): | 160W |
| Micro Step: | 1, 2/A, 2/B, 4, 8, 16, 32 |
| Temperature: | -10℃ ～ 45℃ |
Features:
- H bridge bipolar constant current drive.
- The biggest 4.0 A Eight kinds of output current are optional.
- The biggest 32 To subdivide 6 kinds of subdivision modes selectable.
- Input signal high-speed photoelectric isolation.
- A total of standard single pulse interface.
- Offline retention function.
- The semi-enclosed casing can adapt to a more stringent environment.
- Provide energy saving half automatic current lock function.
Control signal connections:
- PUL +: positive pulse signal input.
- PUL-: pulse signal input negative.
- DIR +: the motor is, reverse the positive control.
- DIR-: the motor is, reverse the negative control.
- ENA +: positive control motor off.
- ENA-: motor off control of the negative.
Motor winding connection:
- A+ : A + phase motor winding connection.
- A- : Connect the motor windings A- phase.
- B+ : B + phase motor winding connection.
- B- : B- phase motor winding connection.
Supply voltage connection:
- VCC: positive power supply terminal “+”
- GND: negative power supply terminal “-“
