JoyStick Shield Module Robotics Control
Product Details

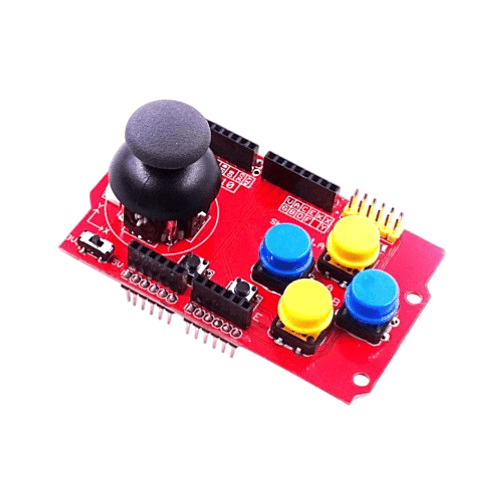

This JoyStick Shield Module Robotics Control is a shield that fits on an Uno or compatible Arduino board and transforms it into a game console or robotic controller. It has a 3.3V to 5V Gamepad Joystick Shield Module Game Rocker Button Controller Expansion Board and a Simulated Keyboard Mouse Module.
The shield has seven momentary push buttons (four big buttons, two small buttons, and a joystick select button) and a two-axis thumb joystick. The shield gives your Arduino the same functionality as old Nintendo controllers.
2-Axis Joystick:
The joystick’s X-Axis potentiometer is connected to A0, and its Y-Axis potentiometer is connected to A1. The analog inputs on a microcontroller read values from 0 to 1023 (for typical 10-bit ADC inputs). The X-Axis and Y-Axis controls should read around 512 (midpoint) when the joystick is at rest. When the joystick moves, one or both of the controls will register higher or lower values depending on the direction. The joystick also has a button ‘K’ that is activated by pressing the joystick down. This button is connected to D8.
Buttons:
There are a total of 6 buttons on the board (not including the one on the joystick) labeled A-F. The 4 large buttons are typically used for up/down/left/right or similar functions. The two smaller buttons are typically used for less commonly used functions such as ‘select’ or ‘start’ since they are less accessible / less likely to be pressed accidentally. All buttons have pull-up resistors and pull to ground when pressed.
Button A – Connects to D2
Button B – Connects to D3
Button C – Connects to D4
Button D – Connects to D5
Button E – Connects to D6
Button F – Connects to D7
Bluetooth Connector:
The RX/TX lines are brought out to a separate 4-pin female header along with 3.3V and Ground. This can be used for connecting a 4-pin 3.3V Bluetooth device or a TTL serial device.
I2C Connector:
The I2C SDA and SCL lines are brought out to a separate 4-pin male header along with 5V and Ground. This is in addition to the normal A4/A5 location of these lines. This allows for easy attachment of I2C devices.
nRF24L01 Connector:
This connector allows a nRF24L01 RF transceiver module to be plugged in.
2 x 4 Female Header
GND – Ground.
VCC – 3.3V
CE – Connects to D9
CSN – Connects to D10
SCK – Connects to D13
MOSI – Connects to D11
MISO – Connects to D12
IRQ – No Connection
Nokia 5110 LCD Connector:
This female header connector is designed to mount the Nokia 5110 LCD that was originally designed for Nokia phones and provides a 48×84 pixel matrix.
This interface occupies the same D9-D13 pins as the nRF24L01, so you can’t use both at the same time.
Interface Connector:
This dual row yellow male header connector provides another point of access to all the buttons, joystick pots, 3.3V, 5V and Ground. The pin-out of this connector is labeled on the board to the left of the connector.
Features:
NRF24L01 RF interface.
for Nokia 5110 LCD interface.
bluetooth interface I2C interface.
for one PS2 joystick.
2-Axis joystick.
Bluetooth / Serial interface.
I2C interface.
nRF24L01 interface.
Nokia 5110 LCD interface.
Interface connector.
Power switch to switch between 3.3 and 5V.
