MT3608L
Non-returnable
₹7.50

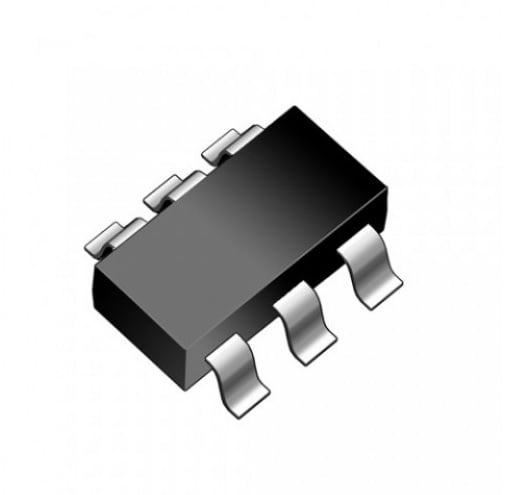

2.5A,High Efficiency 1.2MHz Current Mode Step-Up Converter SOT23-6, Aerosemi
Product Details
The MT3608L is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MT3608L switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life.
The MT3608L features automatic shifting to pulse frequency modulation mode at light loads. The MT3608L includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The MT3608L Step up Converter IC is available in a small 6-pin SOT-23 package.
Features
- Integrated 8 0 mΩ Power MOSFET
- 2.2 V to 16 V Input Voltage
- 1.2 MHz Fixed Switching Frequency
- Adjustable Over Current Protection: 0.5 A ~ 2.5 A
- Internal 2.5 A Switch Current Limit (OC pin floating)
- Adjustable Output Voltage
- Internal Compensation
- Over Voltage Protection
- Up to 20 V Output Voltage
- Automatic Pulse Frequency Modulation Mode at Light Loads
- Up to 93 % Efficiency
- Available in a 6-Pin SOT23-6 Package
Applications
- Battery-Powered Equipment
- Set-Top Boxed
- LCD Bais Supply
- DSL and Cable Modems and Routers
- Networking cards powered from PCI or PCI express slots
