LM358DT

Non-returnable
₹5.45 (Excluding GST)

In Stock : 10

General Purpose Amplifier 2 Circuit 8-SOIC, STMicroelectronics
Note

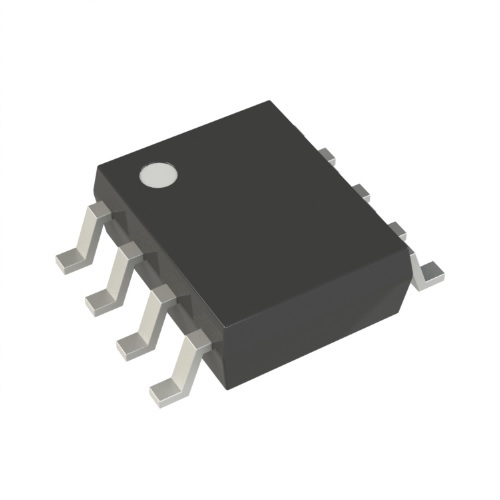

** This image is for representational purposes only **
Info
For B2B orders, contact us on sales@blizzcartz.com
Quantity
Add to Cart
Product Details
Manufacturer Part Number: LM358DT
Manufacturer: STMicroelectronics
Number of Circuits: 2
Slew Rate: 0.6V/µs
Gain Bandwidth Product: 1.1 MHz
Current - Input Bias: 20 nA
Voltage - Input Offset: 2 mV
Current - Supply: 700µA (x2 Channels)
Current - Output / Channel: 30 mA
Voltage - Supply Span (Min): 3 V
Voltage - Supply Span (Max): 30 V
Operating Temperature: 0°C ~ 70°C
Grade: Automotive
Qualification: AEC-Q100
Mounting Type: Surface Mount
Package: 8-SOIC
