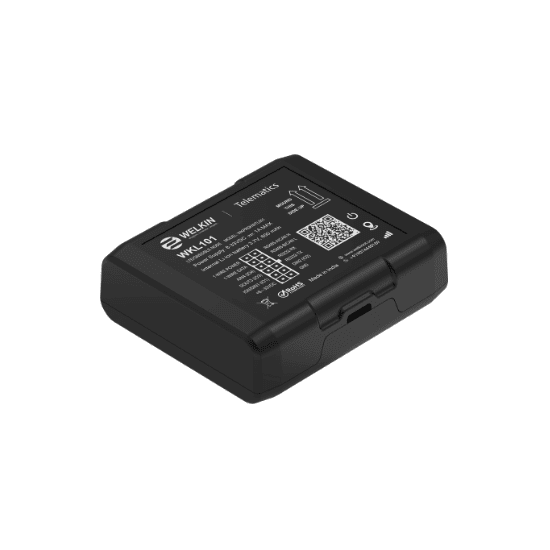

WK L101 - Advanced 4G LTE GPS Tracker for Vehicles
Non-returnable
₹3,219.00 ₹7,626.00
2G and 4G LTE connectivity, external interfaces- RS232 / RS485 / 1-Wire, configurable Digital and Analog IOs, BLE 5, Internal flash memory 8MB (60000 Records), iButton / RFID Support, Internal Battery: 400mAH (3 hours backup), Multi-GNSS engine for GPS, GLONASS, BDS and Galileo, Nano SIM, Welkin
Product Details
| Manufacturer Part Number: | WKPRDHWTL001BA |
| Manufacturer: | Welkin |
| Model: | WK L101 |
| Connectivity: | 2G (GSM), 4G (LTE CAT1) |
| SIM Card Type: | Nano SIM |
| Embedded SIM: | eSIM / eUICC with M2FF package (optional) |
| GNSS Receiver: | Multi-GNSS engine for GPS, GLONASS, BDS, and Galileo |
| Frequency: | GPS L1 Band Receiver and Galileo E1 Band Receiver |
| Operating Temperature : | -40°C - +75°C |
| Country of Origin: | India |
Features:
- 4G (LTE Cat 1) connection with 2G fallback
- Built-in 6 Axis Inertial Measurement Unit
- Digital Inputs: 4
- Digital Outputs: 2
- Analog Inputs: 4
- Serial Interfaces: RS232/RS485/1-Wire
- BLE 5
- Internal Cellular & GNSS Antenna
- Internal flash memory 8MB (60000 Records)
- TCP/HTTP/MQTT communication protocols supported.
- JSON/Binary data formats supported.
- iButton / RFID Support
- Universal BLE sensor integration
- Multi – IP Telemetry support. Up to 4 IPs
- Internal Battery Temperature monitoring for safety
- Internal Battery: 400mAH, 3 hours backup
Special Features:
- Configurable IOs
- Real time tracking
- Towing detection
- Virtual Odometer
- Multi IP Support. Device can send telemetry data up to 4 different tracking servers.
- TCP/HTTP/MQTT support
- Secured SMS Commands for device configuration and status update.
- Intelligent data acquisition based on Time/Speed/Angle/Distance
- Ignition Source Selection
- Movement Source Selection
- Sending acquired data via GPRS
- GPRS and SMS I/O events.
- Internal Battery Temperature Monitoring
- Overvoltage protection
External Interfaces:
- Power supply: +8...+33 V
- 4 Digital Inputs
- 4 Analog Inputs
- 2 Digital Outputs
- 3 LEDs for device status indication
- 1-Wire temperature sensor
- 1-Wire iButton
- BLE Sensors
- Fuel Sensors
