MWSA0603S-2R2MT
Non-returnable
₹9.65

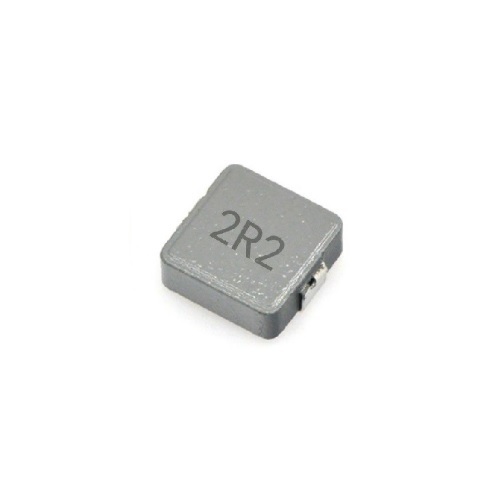

2.2 μH Shielded Drum Core, Wirewound Inductor 9.5 A 15mOhm Max Nonstandard, Shenzhen Sunlord Electronics Co., Ltd.
Product Details
| Manufacturer Part Number: | MWSA0603S-2R2MT |
| Manufacturer: | Shenzhen Sunlord Electronics Co., Ltd. |
| Material - Core: | Alloy Powder |
| Inductance: | 2.2 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 9.5 A |
| Current - Saturation (Isat): | 10A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 15mOhm Max |
| Inductance Frequency - Test: | 100 kHz |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
