RC522 RFID 13.56MHz Reader Writer Module
Non-returnable
₹88.00
RC522 RFID 13.56MHz Reader Writer Module
Product Details

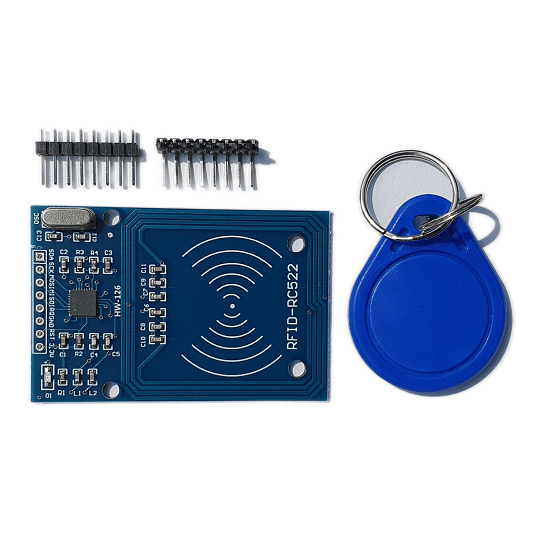

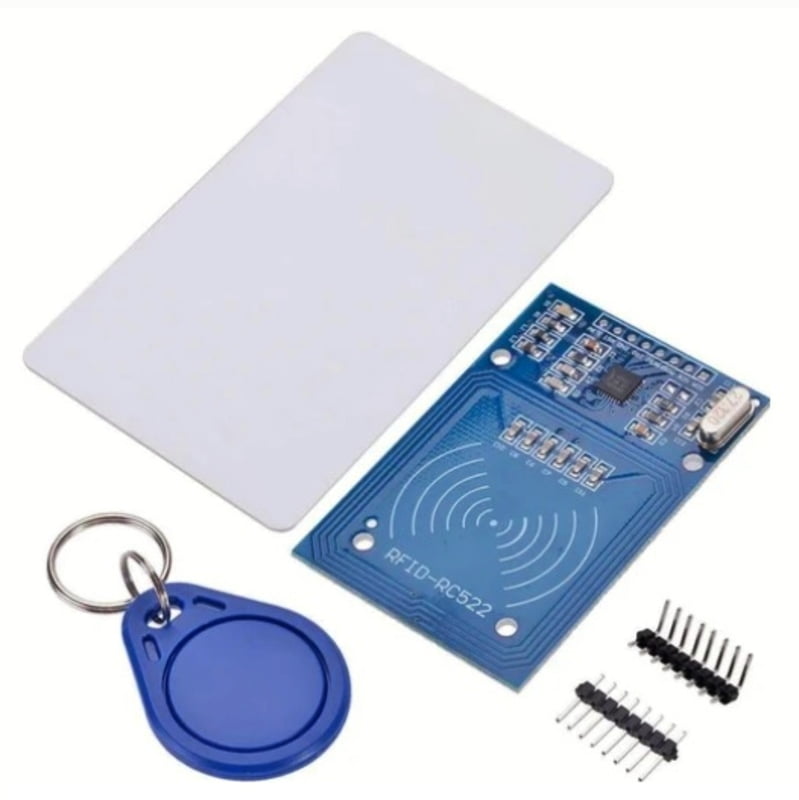

RC522 RFID Reader / Writer Module Kit includes 13.56 Mhz RF reader cum writer, which is based on RC522 chip and S50 card. The MFRC522 is a highly integrated reader / writer for contact less communication at 13.56 Mhz. The MFRC522 reader supports ISO 14443A / MIFARE mode.
Features
- Highly integrated analog circuitry to demodulate and decode responses.
- Supports ISO/IEC 14443 A/MIFARE.
- Typical operating distance in reading/Write mode up to 50 mm.
- Supports ISO/IEC 14443 A higher transfer speed communication up to 848 Kbit/s
- SPI up to 10 Mbit/s.
- FIFO buffer handles 64 bytes send and receive.
- Flexible interrupt modes.
- Power-down by software mode.
- Programmable Timer.
- 2.5 V to 3.3 V power supply.
- CRC coprocessor.
- Internal self-test.
