PH-AW-2mm-3
Non-returnable
₹2.45

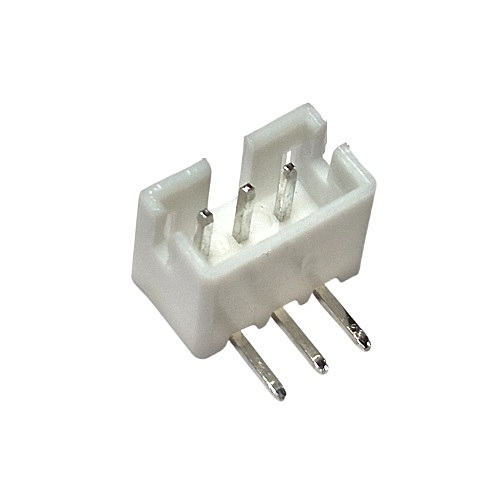

3 pin 2mm Wafer Male Connector Through Hole Right Angle, BOYU
Product Details
| Manufacturer Part Number: | PH-A-2mm-3 |
| Manufacturer: | BOYU |
| Connector Type: | Wafer Male Connector |
| Number of Pins: | 3 |
| Pitch: | 2.00 mm |
| Rated Current: | 2A AC, DC(AWG #24) |
| Rated Voltage: | 250 V |
| Operating Temperature: | -25°C ~ 85°C |
| Contact Resistance: | 10MΩ max |
| Insulation Resistance: | 1000 MOhm |
| Wires: | AWG #30 to #24 |
| Mounting Type: | Through Hole Right Angle |
