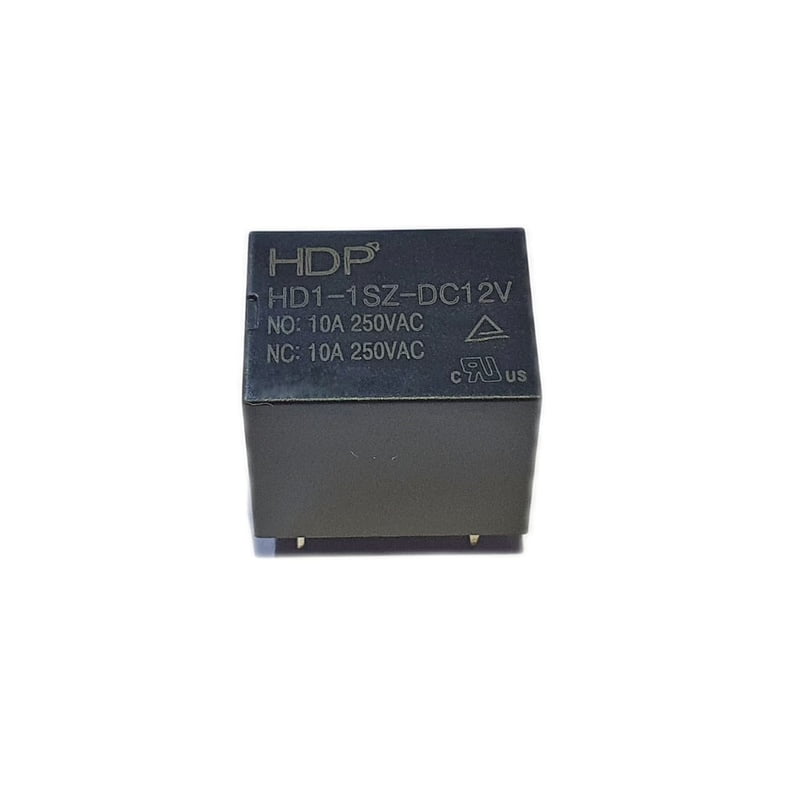

HD1-1SZ-DC12V
Non-returnable
₹17.00
12V 10A 1FormC Sugar Cube Power Relay 19.0x15.2x15.2mm , HDP
Product Details
The HD1 series relays are 15A 250V, 10A 250VAC switching capability with 1FormA and 1FormC configurations. These are plastic sealed and flux proofed type and outline dimensions are 19.0x15.2x15.2mm. The relays are IEC60335-1 certified and RoHS compliant.
| Manufacturer Part Number: | HD1-1SZ-DC12V |
| Manufacturer: | HDP |
| Contact Arrangement: | 1 Form C |
| Coil Voltage (DC): | 12 V |
| Contact Current Rating: | 10 A |
| Contact resistance: | 100 mohm Max.(at 1A 6VDC) |
| Contact material: | AgSnO2 |
| Max. switching current: | 15A |
| Max. switching power: | 2500VA/300W |
| Max. switching voltage: | 277VAC/30VDC |
| Insulation resistance: | 1000 Mohm(at 500VDC) |
| Mechanical endurance: | 10000000 ops |
| Humidity: | 5% to 85% RH |
| Ambient temperature: | -40~85 C |
| Termination: | PCB |
| Construction: | Plastic sealed, Flux proofed |
