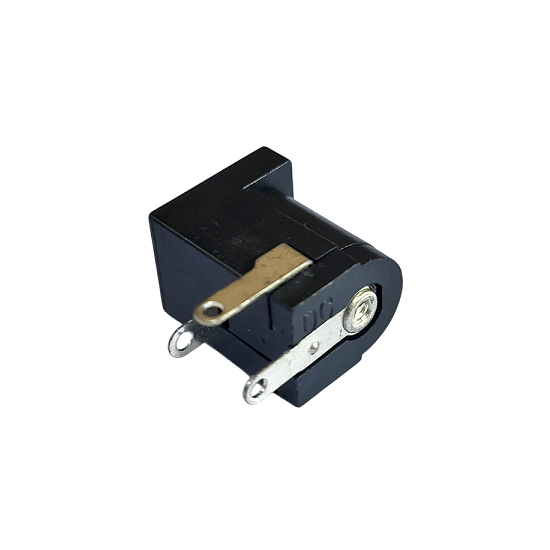

KLS1-DC-005A
Non-returnable
₹7.50

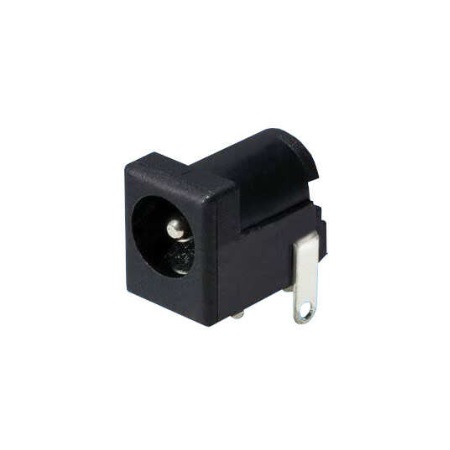

DC Power Jack - KLS Electronics
Product Details
| Manufacturer Part Number: | KLS1-DC-005A |
| Manufacturer: | KLS Electronics |
| Contact resistance: | 0.03Ω, max |
| Insulation resistance: | 100MΩ, min |
| Pressure: | AC500V (50Hz) / 1minute |
| Rated Load: | DC 16V 2.0A Max |
| Actuating Force: | 3 ~ 20N |
| Life: | 5000 times |
| Operating Temperature: | -30°C ~ 70°C |
Material:
Centre Pin:- Copper
Terminal 1:- Brass
Terminal 2:- Copper alloy
Terminal 3:- Brass
Housing:- PBT
Cover:- PBT
