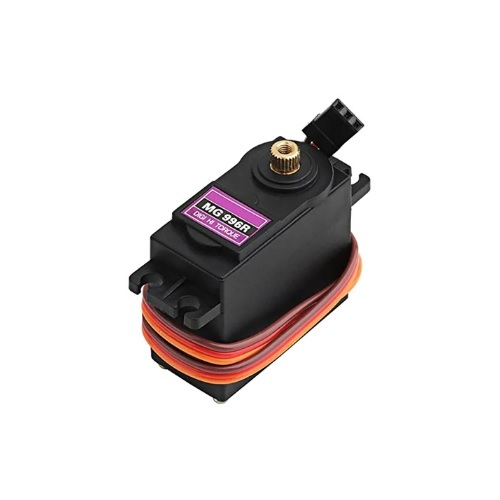

Tower Pro MG996R Digital High Torque Servo Motor (180 Degree Rotation)
Non-returnable
₹225.00
Metal Gear Continuous Rotation Digital High Torque Servo Motor (180 Degree Rotation)
Product Details
Item Type: | TowerPro Servo Motor |
Model Series: | MG Series |
Model Number: | MG995 |
Rotation: | 180 Degree |
Stall Torque (4.8V): | 10kg/cm |
Stall Torque (6.0V): | 12kg/cm |
Operating Voltage: | 4.8V ~ 7.2 V |
Operating Speed @4.8V: | 20sec/60° |
Operating Speed @6.0V: | 16sec/60° |
Gear Type: | Metal Gear |
Servo Plug Type: | JR |
Dead band width: | 5 µs |
Control System: | Analog |
Operating Temperature: | 0°C to 55°C |
Weight: | 55g |
Dimensions : | 40.7mm × 19.7mm × 42.9mm |
Wire Description
Red - Positive
Brown - Negative
Orange - Signal
Features:
The connection cable is thicker.
Equips high-quality motor.
High resolution
Accurate positioning
Fast control response
Constant torque throughout the servo travel range
Excellent holding power
