CH340G
Non-returnable
₹58.00

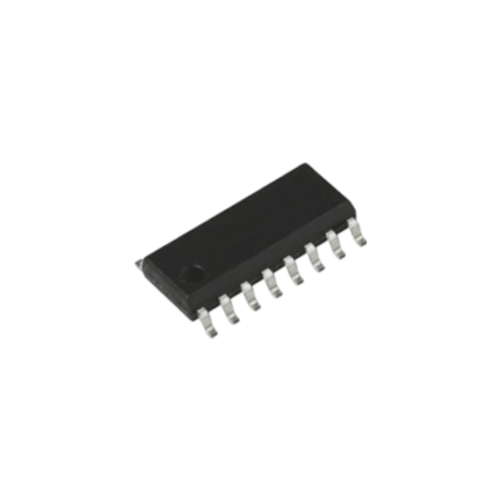

SOIC16 USB to Serial TTLRS232 converter IC
Product Details
| Manufacturer Part Number: | CH340G |
| USB Compatibility: | USB 2.0 full-speed (12 Mbps) |
| Baud Rate Range: | 50 bps to 2 Mbps |
| Supply Voltage: | 3.3V to 5V |
| Number of Pins: | 16 |
| Operating Temperature: | -40°C to +85°C |
| Mounting Type: | SMD/SMT |
| Case/Package: | SOIC 16 |
Features:
- Full speed USB device interface, conforms to USB Specification Version 2.0, only needs crystal and capacitance external.
- Emulate standard serial interface, used to upgrade the former peripheral device, or add excess serial interface through USB.
- Totally compatible with the serial application program in a computer endpoint Windows operation system.
- Hardware full duplex serial interface, set transceiver buffer, supports communication baud rate varies from 50bps to 2Mbps.
- Supports common MODEM liaison signal RTS, DTR, DCD, RI, DSR and CTS.
- Through adding level converter equipment to supply RS232, RS485, RS422 and another interface.
- Supports IrDA criterion SIR infrared communication, supports baud rate varies from 2400bps to 115200bps.
- For it is through USB converts to the serial interface, only compatible with application layer not totally.
- Software compatible with CH341, using the drive of CH341 directly.
- Support 5V and 3.3V source voltage.
- Supply SSOP-20 package without lead, compatible with RoHS.
