AQ3102-02JTG

Non-returnable
₹71.15
Out of stock
16V Clamp 8A (8/20μs) Ipp Tvs Diode Surface Mount SC-70-3, Littelfuse Inc.
Note

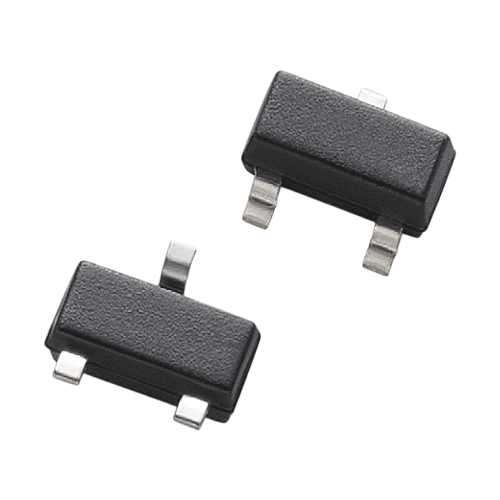

** This image is for representational purposes only **
Info
For B2B orders, contact us on sales@blizzcartz.com
Add to Cart
Product Details
Manufacturer Part Number: AQ3102-02JTG
Manufacturer: Littelfuse Inc.
Unidirectional Channels: 2
Voltage - Reverse Standoff (Typ): 6V (Max)
Voltage - Breakdown (Min): 6.5V
Voltage - Clamping (Max) @ Ipp: 16V
Current - Peak Pulse (10/1000µs): 8A (8/20µs)
Capacitance @ Frequency: 1pF @ 3GHz
Operating Temperature: -40°C ~ 150°C
Grade: Automotive
Qualification: AEC-Q101
Mounting Type: Surface Mount
Package / Case: SC-70-3
