L89HA-S90
Non-returnable
₹490.00

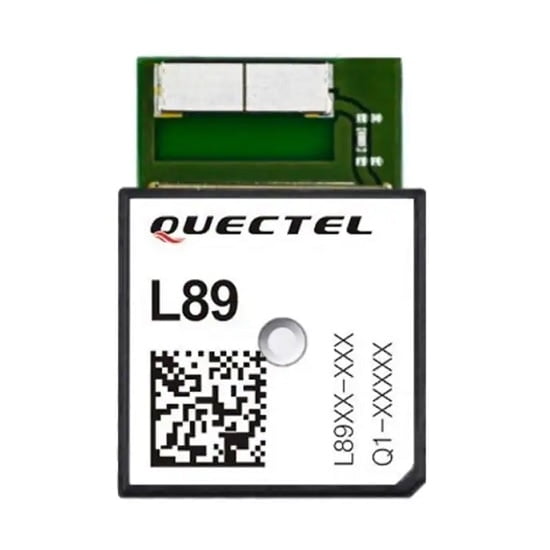

IRNSS-enabled GNSS Module, Quectel
Product Details
| Manufacturer Part Number: | L89HA-S90 |
| Manufacturer: | Quectel |
| Frequency: | 1.176 GHz, 1.561 GHz, 1.575 GHz, 1.602 GHz |
| Time To First Fix - Cold Start: | 13 s |
| Acquisition Sensitivity: | -147 dBm |
| Horizontal Position Accuracy: | 1.8 m |
| Supply Voltage - Min: | 3.3 V |
| Supply Voltage - Max: | 3.3 V |
| Operating Supply Current: | 99 mA |
| Interface Type: | I2C, UART |
| Operating Temperature: | -40 C to + 85 C |
| Protocol - GPS, GLONASS: | BeiDou, Galileo, IRNSS, GPS, GLONASS, QZSS |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 3.3 V |
