ZMCT103E
Non-returnable
₹75.00

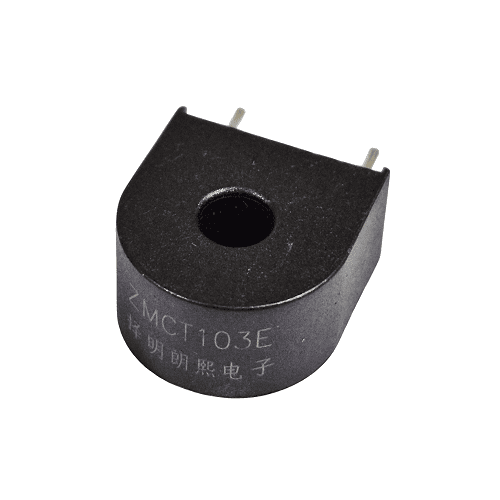

40 Ampere Current Transformer - PCB Mounting, ZHE MING LANG XI
Product Details
| Manufacturer Part Number: | ZMCT103E |
| Manufacturer: | ZHE MING LANG XI |
| Input current: | 0 ~ 40A（sampling resistor 100Ω） |
| Rated output current: | 2.5mA at input 5A |
| Turns ratio: | 2000:1 |
| Phase angle error: | ≤30＇(input 10A，sampling resistor 100Ω） |
| Accuracy: | 0.3 class |
| Linearity: | ≤0.2%（5%dot~120%dot） |
| Permissible error: | -0.3%≤f≤+0.3% (input 10A，sampling resistor 100Ω） |
| Isolation voltage: | 4500V |
| Application: | Measuring or protection |
| Encapsulation: | Epoxy |
| Installation: | PCB mounting（Pin Length>3mm） |
| Operating temperature: | -40℃ ~ 85℃ |
