SRV05-4.TCT
Non-returnable
₹25.00

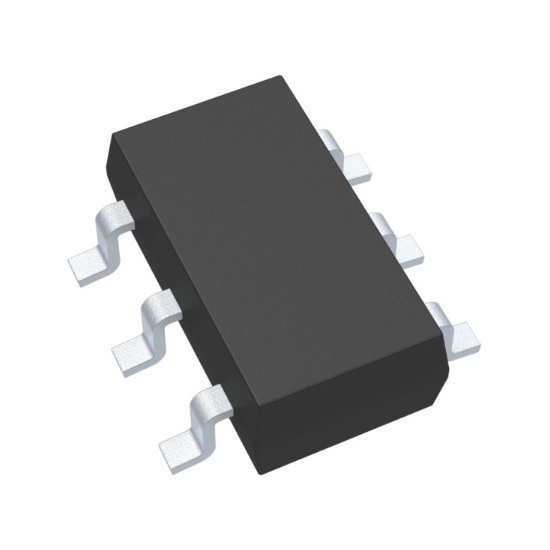

17.5V Clamp 12A (8/20μs) Ipp Tvs Diode Surface Mount SOT- 23-6, Semtech Corporation
Product Details
| Manufacturer Part Number: | SRV05-4.TCT |
| Manufacturer: | Semtech Corporation |
| Unidirectional Channels: | 4 |
| Voltage - Reverse Standoff (Typ): | 5V (Max) |
| Voltage - Breakdown (Min): | 6V |
| Voltage - Clamping (Max) @ Ipp: | 17.5V |
| Current - Peak Pulse (10/1000µs): | 12A (8/20µs) |
| Power - Peak Pulse: | 300W |
| Power Line Protection: | Yes |
| Capacitance @ Frequency: | 3pF @ 1MHz |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | SOT-23-6 |
