SRP7050TA-100M

Non-returnable
₹16.50
10 μH Shielded Drum Core, Wirewound Inductor 4 A 69mOhm Max Nonstandard, 10 μH Shielded Drum Core, Wirewound Inductor 4 A 69mOhm Max Nonstandard
Note

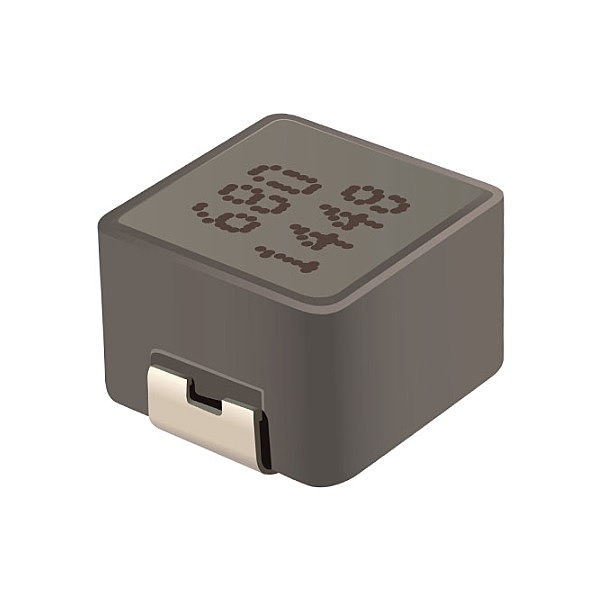

** This image is for representational purposes only **
Info
For B2B orders, contact us on sales@blizzcartz.com
Quantity
Add to Cart
Product Details
Manufacturer Part Number: SRP7050TA-100M
Manufacturer: Bourns Inc.
Inductance: 10 uH
Tolerance: ±20%
Current Rating (Amps): 4 A
Current - Saturation (Isat): 7.5A
Shielding: Shielded
Material - Core: Carbonyl Powder
DC Resistance (DCR): 69mOhm Max
Q @ Freq: 15 @ 100kHz
Frequency - Self Resonant: 15MHz
Ratings: AEC-Q200
Operating Temperature: -40°C ~ 150°C
Inductance Frequency - Test: 100 kHz
Mounting Type: Surface Mount
Package / Case: Nonstandard
