₹17.00

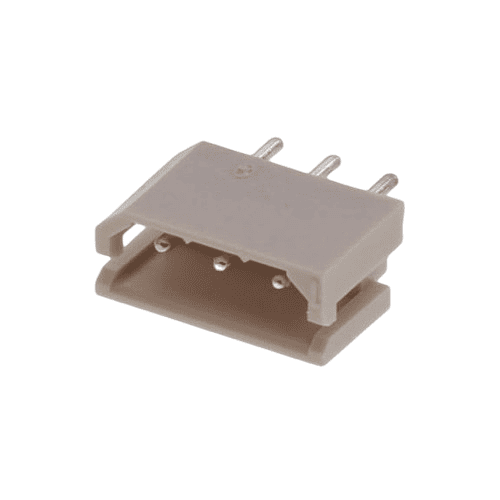

Connector Header Through Hole 3 position 0.098" (2.50mm), Molex
Note
** This image is for representational purposes only ** Info
For B2B orders, contact us on sales@blizzcartz.com Quantity
Add to Cart
Product Details
| Manufacturer Part Number: | 22-03-5035 |
| Manufacturer: | Molex |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.098" (2.50mm) |
| Number of Positions: | 3 |
| Number of Rows: | 1 |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Termination: | Solder |
| Fastening Type: | Detent Lock |
| Contact Length - Mating: | 0.138" (3.50mm) |
| Contact Length - Post: | 0.138" (3.50mm) |
| Overall Contact Length: | 0.350" (8.89mm) |
| Insulation Height: | 0.232" (5.90mm) |
| Contact Shape: | Circular |
| Contact Finish - Mating: | Tin |
| Contact Finish - Post: | Tin |
| Contact Material: | Brass |
| Insulation Material: | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Angle: | Straight |
| Current Rating: | 3 A |
| Voltage Rating: | 250 V |
| Operating Temperature: | -55°C ~ 105°C |
| Mounting Type: | Through Hole |
| Flammability Rating: | UL94 V-0 |
