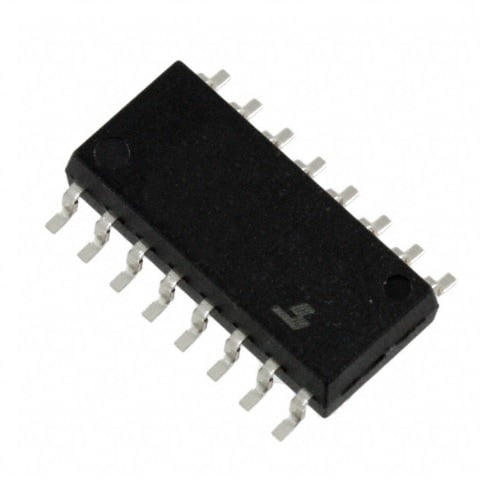

TLP291-4(GB-TP,E)
Non-returnable
₹35.00
Optoisolator Transistor Output 2500Vrms 4 Channel 16-SO, Toshiba Semiconductor
Product Details
| Manufacturer Part Number: | TLP291-4(GB-TP,E) |
| Manufacturer: | Toshiba Semiconductor |
| Number of Channels: | 4 |
| Voltage - Isolation: | 2500Vrms |
| Current Transfer Ratio (Min): | 100% @ 5mA |
| Current Transfer Ratio (Max): | 400% @ 5mA |
| Turn On / Turn Off Time (Typ): | 3µs, 3µs |
| Rise / Fall Time (Typ): | 2µs, 3µs |
| Input Type: | DC |
| Output Type: | Transistor |
| Voltage - Output (Max): | 80V |
| Current - Output / Channel: | 50mA |
| Voltage - Forward (Vf) (Typ): | 1.2V |
| Current - DC Forward (If) (Max): | 50 mA |
| Vce Saturation (Max): | 400mV |
| Operating Temperature: | -55°C ~ 110°C |
| Mounting Type: | Surface Mount |
| Package: | 16-SO |
