ER-TFT070IPS-4-4251-4252-2469
Non-returnable
₹3,800.00

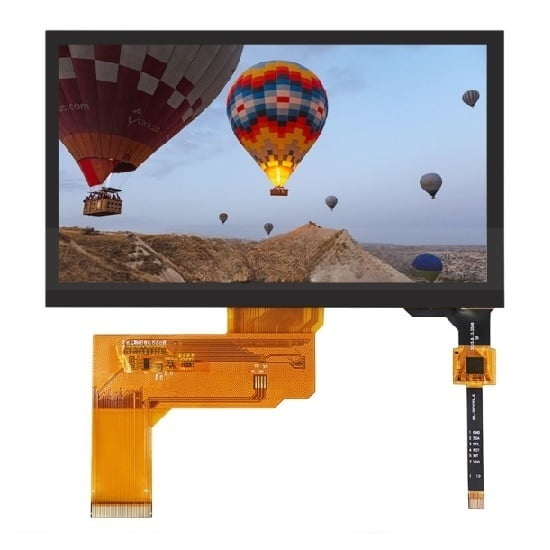

Wide Angle 7 inch 800x480 Color IPS TFT Display ST7277 Controller, Touch Panel (Attached by default): 7 “Capacitive Touch w/Controller, EastRising Technology
Product Details
ER-TFT070IPS-4 is a 7 inch IPS TFT display with the resolution of 800x480 pixels. The display has a high contrast ratio of 800:1, making it capable of rendering deep blacks and vibrant colors. It also has a very high brightness of 750cd/m2, making it suitable for use in both indoor and outdoor environments.
ER-TFT070IPS-4 comes with optional resistive or capacitive touch screen capability, allowing users to interact with the display through touch. The resistive touch screen option allows for precise touch input using a stylus or finger, while the capacitive touch screen option allows for multi-touch input with bare fingers.
The LED backlight driver IC we suggest to use for this display is PT4110.
| Manufacturer Part Number: | ER-TFT070IPS-4-4251-4252-2469 |
| Manufacturer: | EastRising Technology |
| Display Format: | 800x480 Pixels |
| Interface: | RGB |
| IC or Equivalent: | ST7277 |
| Appearance: | RGB |
| Diagonal Size: | 7.0“ |
| Connection: | Plug-in FPC |
| Outline Dimension: | 164.86(W) x 99.96(H) x 3.3(T)mm |
| Visual Area: | 156.81 x 88.86mm |
| Active Area: | 153.84(W) x 85.63(H)mm |
| Dot (Pixel) Pitch: | 0.192 x 0.178mm |
| IC Package: | COG |
| Display Type: | TFT-LCD Color |
| Touch Panel Optional: | Yes |
| Contrast Ratio (Typ): | 800:1 |
| Colors: | 65K/262K/16.7M |
| Viewing Direction: | IPS |
| Viewing Angle Range: | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness (Typ): | 750cd/m2 |
| Backlight Color: | White |
| Power Supply (Typ): | 3.3V |
| Operating Temperature: | -20℃~70℃ |
