NN03-320
Non-returnable
₹74.58

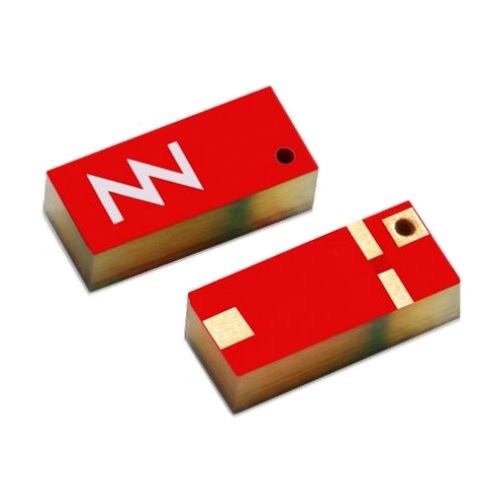

RF ANTENNA 5G, 802.11b/g/n /a/ac/ax, Beidou, Bluetooth, Galileo, Glonass, GNSS, GPS, Wi-Fi Chip Solder Surface Mount, Ignion
Product Details
| Manufacturer Part Number: | NN03-320 |
| Manufacturer: | Ignion |
| RF Family/Standard: | Bluetooth, Cellular, Navigation, WiFi |
| Frequency Group: | Ultra Wide Band |
| Frequency (Center/Band): | 1.561GHz, 1.575GHz, 1.602GHz, 2.45GHz, 3.4GHz, 3.5GHz, 3.7GHz, 4GHz, 4.5GHz, 5GHz, 5.5GHz, 6.1GHz, 6.6GHz, 7.1GHz, 7.7GHz, 8.2GHz, 8.7GHz, 9.2GHz, 9.8GHz, 10.3GHz |
| Frequency Range: | 1.56GHz ~ 10.6GHz |
| Antenna Type: | Chip |
| VSWR: | < 3:1 |
| Impedance | 50 Ohm |
| Polarization: | Linear |
| Gain: | -1.1dBi, 1.6dBi, 1.8dBi, 1.1dBi, 4.1dBi, 2.6dBi, 2.3dBi, 3.6dBi |
| Termination: | Solder |
| Mounting Type: | Surface Mount |
| Height (Max): | 0.079" (2.00mm) |
