LM5109BMAX/NOPB
Non-returnable
₹60.00

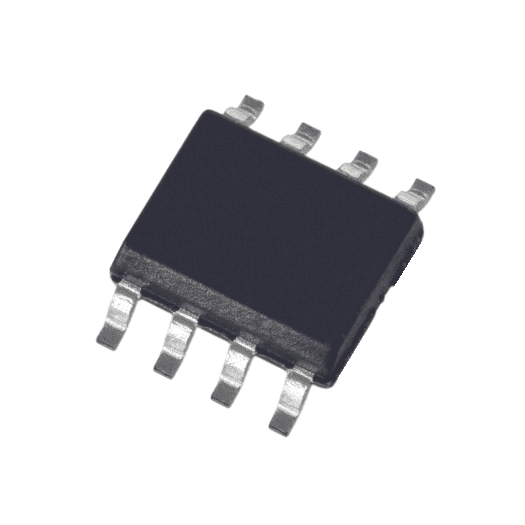

Half-Bridge Gate Driver IC Non-Inverting 8-SOIC, Texas Instruments
Product Details
| Manufacturer Part Number: | LM5109BMAX/NOPB |
| Manufacturer: | Texas Instruments |
| Driven Configuration: | Half-Bridge |
| Channel Type: | Independent |
| Number of Drivers: | 2 |
| Gate Type: M | OSFET (N-Channel) |
| Voltage - Supply: | 8V ~ 14V |
| Logic Voltage - VIL, VIH: | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink): | 1A, 1A |
| Input Type: | Non-Inverting |
| High Side Voltage - Max (Bootstrap): | 108 V |
| Rise / Fall Time (Typ): | 15ns, 15ns |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
