EC200UCNAA-N05-SGNSA
Non-returnable
₹850.00

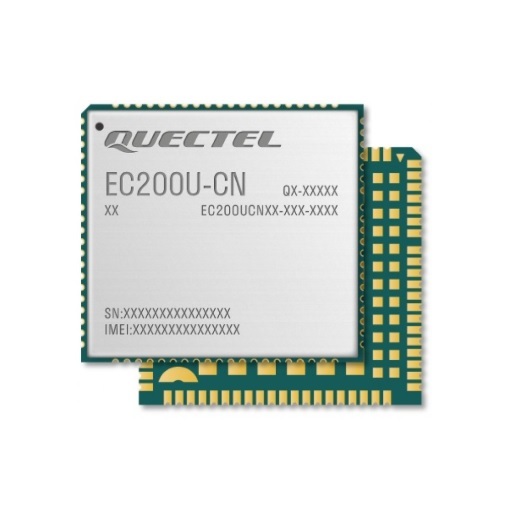

LTE Cat-1 4G LTE QuecOpen Module with GNSS, BLE, Quectel
Product Details
| Manufacturer Part Number: | EC200UCNAA-N05-SGNSA |
| Manufacturer: | Quectel |
| Moisture Sensitive: | Yes |
| Operating Temperature: | -35 °C to +75 °C |
Quectel EC200U series is a series of the latest LTE Cat 1 module optimized specially for M2M and IoT applications. It delivers maximum data rates up to 10 Mbps downlink and 5 Mbps uplink. Designed in the compact and unified form factor, EC200U series is compatible with Quectel multi-mode LTE Standard EC25 series/EC21 series/EC20 R2.1/EC20-CN/EC200T series/EC200S series/EC25-G/EC21-G and UMTS/HSPA+ UC200T series, ensuring that it can easily migrate from 3G to 4G network. EC200U series also supports standard Mini PCIe packages to meet the needs of different industry applications.
EC200U series contains two variants: EC200U-CN and EC200U-EU, which meets the frequency band coverage of different countries and regions. Adopting laser engraving process, EC200U series features a more fashionable appearance, strong metallic texture, better heat dissipation capability and durable label information, which makes it ideally suited for automation requirement.
EC200U series has a rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as POS/POC/ETC, shared equipment, data card, energy control and monitoring, security and protection, and industrial PDA.
Key Features
LTE Cat 1 wireless module designed for M2M and IoT applications
Multi-network system coverage
Rich functional interface
Support internal Codec
Support Bluetooth
Support FOTA remote upgrade function
Super cost-effective
Frequency Bands of EC200U-CN QuecOpen Module
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
GSM: 900 MHz/1800 MHz
