ER-EPD029-2R-2694
Non-returnable
₹750.00

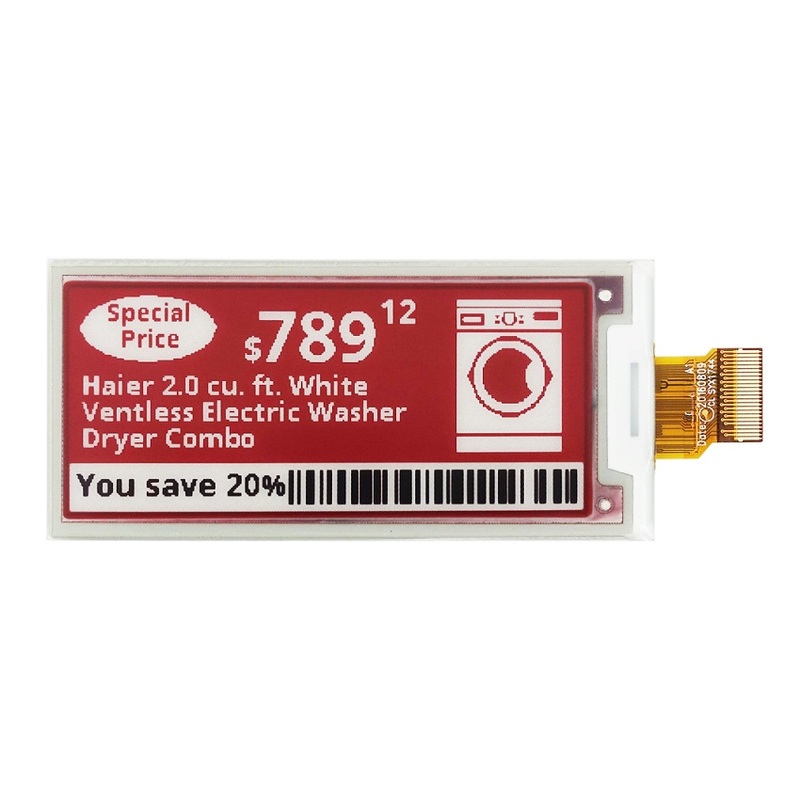

Sunlight Readable SPI 2.9" Color e-Ink Display Module 128x296, EastRising Technology
Product Details
The e-Paper display that comes with this ER-EPD029-2R is a 2.9 inch 128x296 resolution with red/white/black color with embedded controller, communicating via SPI interface. One fantastic aspect of the e-Paper display is the fact they don't need any power to keep the image on the screen. Just like a Kindle, you can read whatever is on your screen in daylight without any reflection. It comes with SSD1680 controller, compact size (COG package), high contrast, sun readable, FPC connection, optional FPC connector. It supports 3/4-wire serial interface.
| Manufacturer Part Number: | ER-EPD029-2R-2694 |
| Manufacturer: | EastRising Technology |
| Display Format: | 128x296 Dots |
| Interface: | 3-wire SPI, 4-wire SPI |
| IC or Equivalent: | SSD1680 |
| Appearance: | Red+Black on White |
| Diagonal Size: | 2.9 inch |
| Connection: | Plug-in FPC |
| IC Package: | COG |
| Display Type: | E-Paper |
| Touch Panel Optional: | No |
| Sunlight Readable: | Yes |
| Viewing Angle Range: | Left:85.0, Right:85.0, Up:85.0, Down:85.0 degree |
| Brightness(Typ): | 80cd/m2 |
| Power Supply(Typ): | 3V |
| Operating Temperature: | 0℃ ~ 40℃ |
| Outline Dimension: | 36.70(W) x 79.00(H) x 0.95(T)mm |
| Visual Area: | 29.06 x 66.90mm |
| Active Area: | 29.06(W) x 66.90(H)mm |
| Dot (Pixel) Pitch: | 0.227 x 0.226mm |
