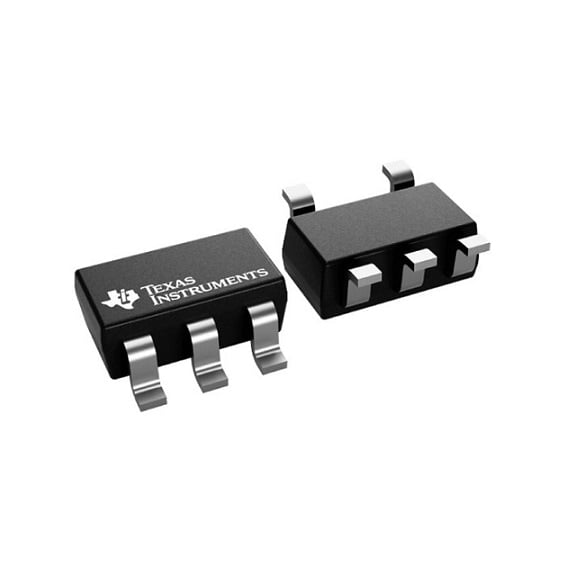

TLV75533PDBVR
Non-returnable
₹16.50
500-mA high-PSRR low-IQ low-dropout (LDO) voltage regulator with enable, Texas Instruments
Product Details
The TLV755P is an ultra-small, low quiescent current, low-dropout regulator (LDO) that sources 500mA with good line and load transient performance. The TLV755P is optimized for a wide variety of applications by supporting an input voltage range from 1.45V to 5.5V. To minimize cost and solution size, the device is offered in fixed output voltages ranging from 0.6V to 5V to support the lower core voltages of modern microcontrollers (MCUs). Additionally, the TLV755P has a low IQ with enable functionality to minimize standby power. This device features an internal soft-start to lower inrush current, thus providing a controlled voltage to the load and minimizing the input voltage drop during start up. When shutdown, the device actively pulls down the output to quickly discharge the outputs and provide a known start-up state.
| Manufacturer Part Number: | TLV75533PDBVR |
| Manufacturer: | Texas Instruments |
| Output Voltage: | 3.3 V |
| Output Current: | 500 mA |
| Polarity: | Positive |
| Input Voltage Range: | 1.4 V to 5.5 V |
| Operating Temperature: | -40°C ~ 125°C |
