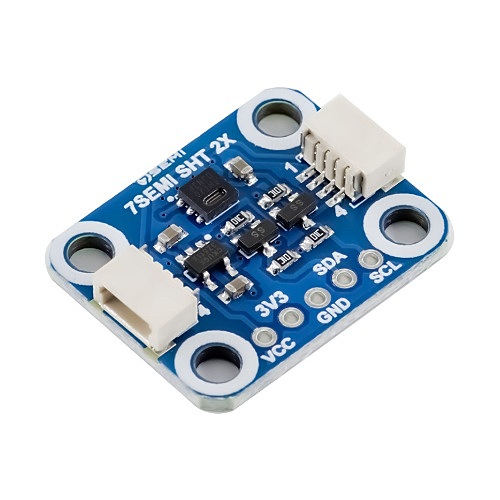

7Semi SHT20 Humidity and Temperature Sensor Breakout
Non-returnable
₹279.00
7Semi SHT20 Humidity and Temperature Sensor Breakout
Product Details
Electrical Characteristics:
- Supply Voltage: 3.3V to 5V (logic-level compatible)
- Interface: I²C (Qwiic connector for plug-and-play integration)
- Power Consumption: Low-power design, ideal for battery-powered systems
Measurement Performance:
- Relative Humidity Range: 0% to 100% RH
- Humidity Accuracy: ±3% RH
- Temperature Range: -40°C to +125°C
- Temperature Accuracy: ±0.3°C
- Response Time:
- Humidity: ~8 seconds
- Temperature: ~5 seconds
Sensor Technology:
- Core IC: Sensirion SHT20 with 4C CMOSens® technology
- Calibration: Fully factory-calibrated, digital output ready-to-use
- Long-Term Stability: Excellent drift resistance for reliable monitoring
Mechanical & Integration:
- Connector: Qwiic-compatible for quick, solderless connection
- Form Factor: Compact breakout board for easy integration into prototypes and embedded systems
- Mounting: Standard breakout design, suitable for breadboards or direct wiring
