B2PS-VH
Non-returnable
₹7.65

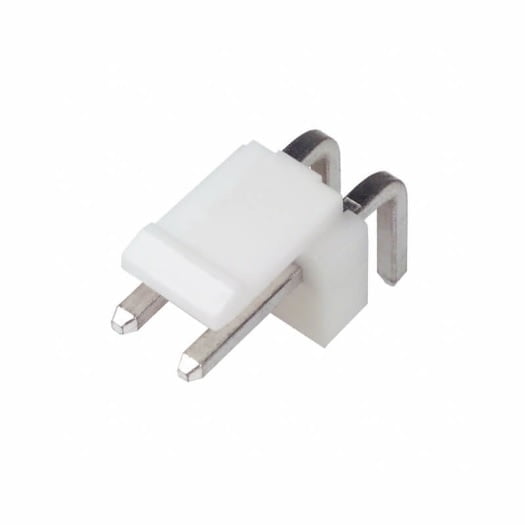

Connector Header Through Hole,Centre Lock, Right Angle 2 position 0.156" (3.96mm), JST
Product Details
| Connector Type: | B2PS-VH |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Nickel |
| Gender: | Male |
| Contact Type: | Right Angle Male Pin |
| Fastening Type: | Locking Ramp |
| Pitch: | 3.96 mm |
| Rated Operating Voltage: | 250 V |
| Current Handling Capacity: | 10 A |
| No. of Contact Points: | 2 |
| Allowed Wire Size: | 20 ~ 28 AWG |
| Operating Temperature Range: | -25 °C ~ 85 °C |
| Approx Weight: | 2gm |
