MT3608
Non-returnable
₹6.44

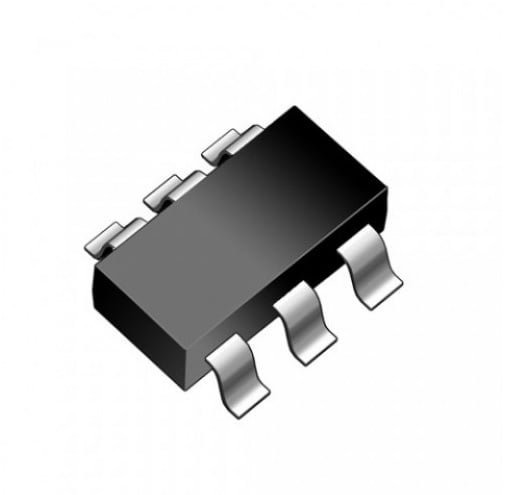

2A,High Efficiency 1.2MHz Current Mode Step-Up Converter SOT23-6, Aerosemi
Product Details
The MT3608 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MT3608 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life.
The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The MT3608 is available in a small 6-pin SOT-23 package.
Features
- Integrated 80mΩ Power MOSFET
- 2 V to 24 V Input Voltage
- 1.2MHz Fixed Switching Frequency
- Internal 4 A Switch Current Limit
- Adjustable Output Voltage
- Internal Compensation
- Up to 28 V Output Voltage
- Automatic Pulse Frequency Modulation
- Mode at Light Loads
- Up to 97 % Efficiency
- Available in a 6-Pin SOT23-6 Package
Applications
- Battery-Powered Equipment
- Set-Top Boxed
- LCD Bais Supply
- DSL and Cable Modems and Routers
- Networking cards powered from PCI or PCI express slots
