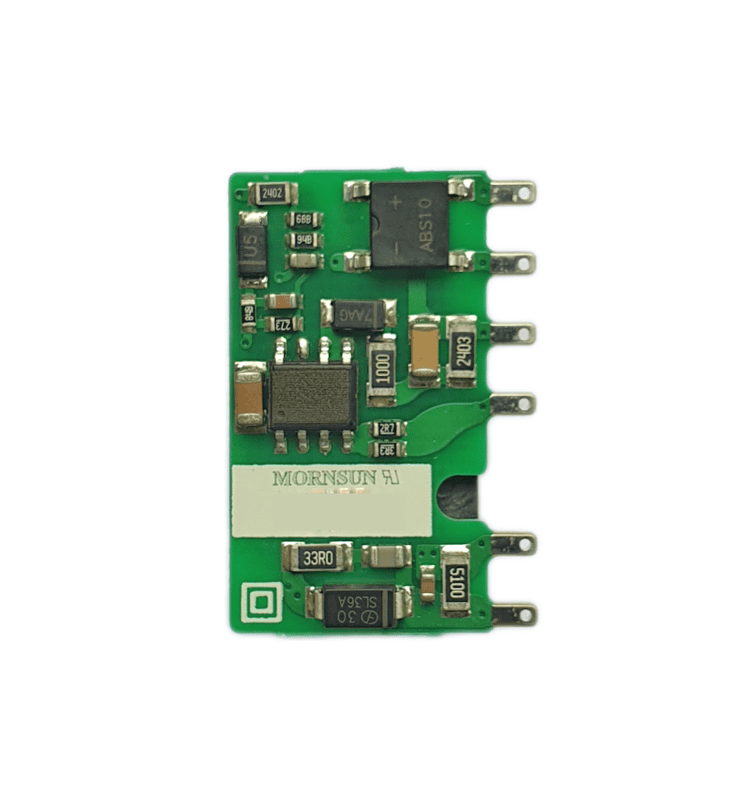

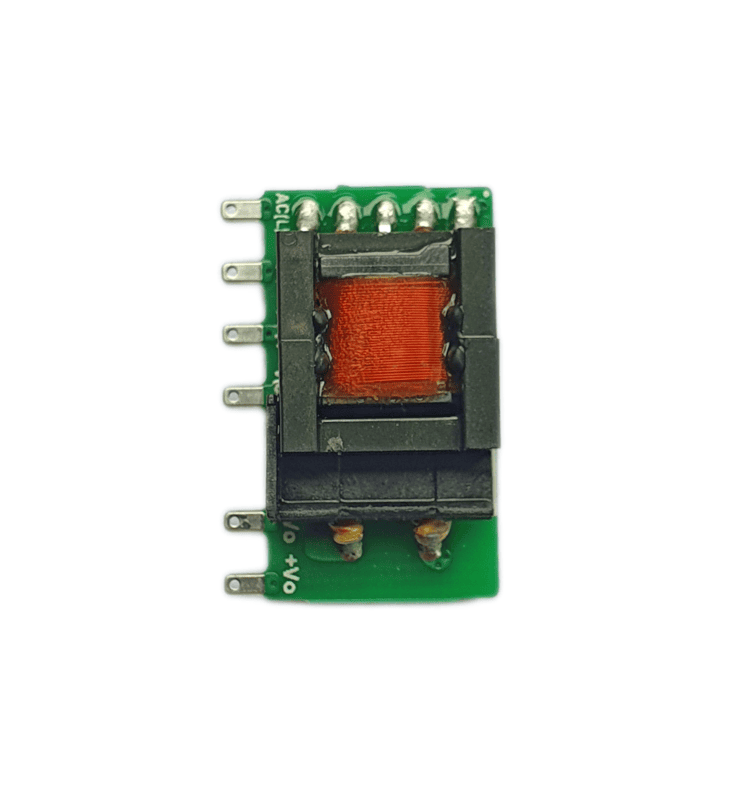

LS05-13B05R3
Non-returnable
₹133.00
Open Frame AC DC Converters 1 Output 5V 1A 85 ~ 305 VAC, 70 ~ 430 VDC Input, Mornsun
Product Details
The LS05-13B05R3 is a 5W DIY AC/DC converter designed for versatile applications. It features an ultra-wide input voltage range of 85 - 305VAC and 70 - 430VDC, making it suitable for various power sources. This converter accepts both AC and DC input through the same terminal, offering flexibility. Operating within a wide ambient temperature range of -40C to +85C, it is adaptable to various environments. With a compact size and high power density, it provides efficient power conversion while maintaining a green power profile. The converter offers controllable life and adjustable cost parameters. Its no-load power consumption is minimal at 0.1W. Additionally, it provides protection against output short circuits and over-current conditions, ensuring operational safety. The LS05-13BxxR3 series holds UL/EN/IEC62368 safety approval, while the LS05-13BxxR3-F series is EN62368 approved.
| Manufacturer Part Number: | LS05-13B05R3 |
| Manufacturer: | Mornsun |
| Voltage - Input: | 85 ~ 305 VAC, 70 ~ 430 VDC |
| Power: | 5 W |
| Current - Output (Max): | 1000 mA |
| Voltage - Output: | 5 V |
| Efficiency: | 76% |
| Isolation (VAC): | 3600 |
Features
- Input Voltage Range: Ultra-Wide 85 - 305VAC, 70 - 430VDC
- Input Type: AC/DC (Dual-Use Terminal)
- Operating Temperature: -40C to +85C
- Application: Multi-Application, Flexible Layout
- Size: Compact
- Power Density: High
- Efficiency: Green Power
- Controllability: Adjustable Life and Cost
- No-Load Power Consumption: 0.1W
- Protection: Output Short Circuit, Over-Current
- Safety Approval: UL/EN/IEC62368 (LS05-13BxxR3 series), EN62368 (LS05-13BxxR3-F series)
