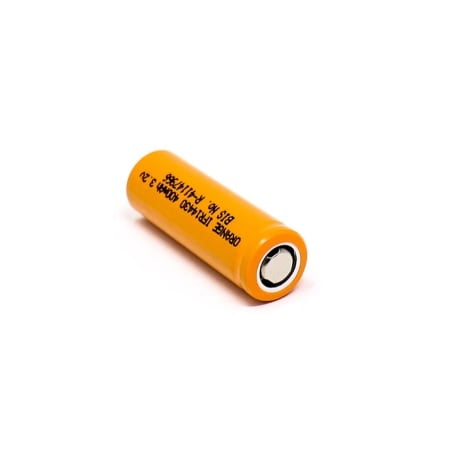

Orange A Grade IFR14430 3.2V 400mAh 3C LiFePO4 Battery
Non-returnable
₹76.00
Orange A Grade IFR14430 3.2V 400mAh 3C LiFePO4 Battery
Product Details
| Manufacturer Part Number: | IFR 14430 |
| Capacity: | 400 mAh |
| Output Voltage: | 3.2 VDC |
| Discharge Voltage: | 2 V |
| Charging Voltage: | 3.65 V |
| Standard Charge: | Constant Current: 0.2 C 5A Constant Voltage: 3.6 5V Cut-off: 0.02 C 5A |
| Standard Discharge: | Constant Current: 0.2 C 5A End Voltage: 2.0V |
| Fast Charge: | Constant Current: 1C 5A Constant Voltage: 3.65V Cut off: 0.02 C 5A |
| Fast Discharge: | Constant Current: 1C 5A End Voltage: 2.0V |
| Max. Continuous Charge Current: | 1C 5A |
| Max. Continuous Discharge Current: | 3C 5A |
| Operation Temp. Range: | Charge: 0 ~ 45ºC Discharge: -10 ~ 60ºC |
| Width (Body Diameter): | 14 mm |
| Height: | 43.4 mm |
| Weight: | 15 gm |
