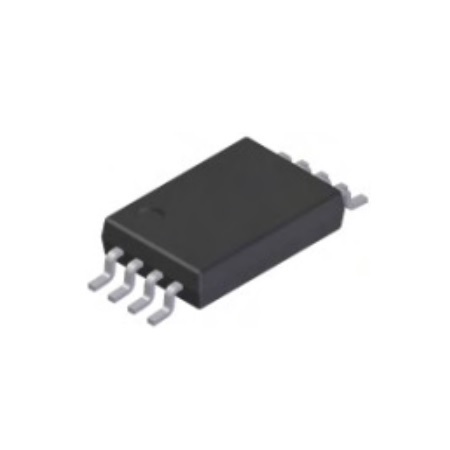

DMP2035UTS-13
Non-returnable
₹52.00
Mosfet Array 20V 6.04A 890mW Surface Mount 8- TSSOP, Diodes Incorporated
Product Details
| Manufacturer Part Number: | DMP2035UTS-13 |
| Manufacturer: | Diodes Incorporated |
| Technology: | MOSFET (Metal Oxide) |
| Configuration: | 2 P-Channel (Dual) Common Drain |
| FET Feature: | Logic Level Gate |
| Drain to Source Voltage (Vdss): | 20V |
| Current - Continuous Drain (Id) @ 25°C: | 6.04A |
| Rds On (Max) @ Id, Vgs: | 35mOhm @ 4A, 4.5V |
| Vgs(th) (Max) @ Id: | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 15.4nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds: | 1610pF @ 10V |
| Power - Max: | 890mW |
| Operating Temperature: | -55°C ~ 150°C |
| Mounting Type: | Surface Mount |
| Package: | 8-TSSOP |
