MUP-C790-21
Non-returnable
₹23.00

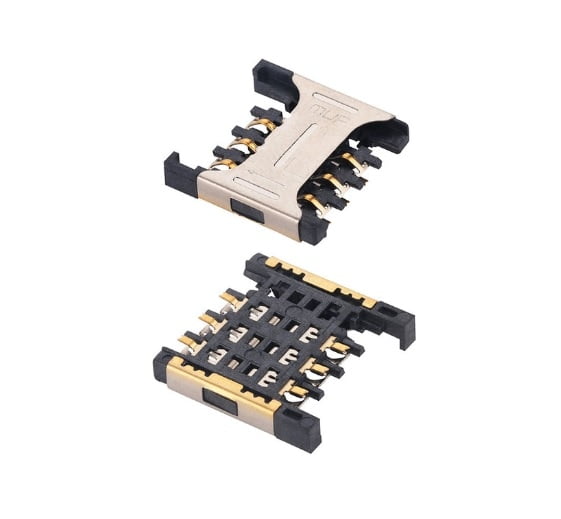

Micro SIM Card Connector MUP-C790 6P 2.4H, Shenzhen MUP Industrial Co., Ltd.
Product Details
| Manufacturer Part Number: | MUP-C790-21 |
| Manufacturer: | MUP |
| Mount: | Surface Mount |
| Number Of Pins: | 6 |
| Rated Voltage: | 50V max |
| Rated Current: | 1A max, 10uA min |
| Min Operating Temperature: | -40°C |
| Max Operating Temperature: | 85°C |
| Insulator: | Thermoplastic |
| Contact Material: | Phosphor bronze |
| Contact Plating: | Gold over nickel |
| Contact Principle: | Friction Technology |
| Contact Resistance: | 50 mohm typical |
| Dimensions: | 13.4x13.4x2.4 mm |
