FNIRSI 1014D Digital Storage Oscilloscope

Write a review
Non-returnable
₹12,625.00

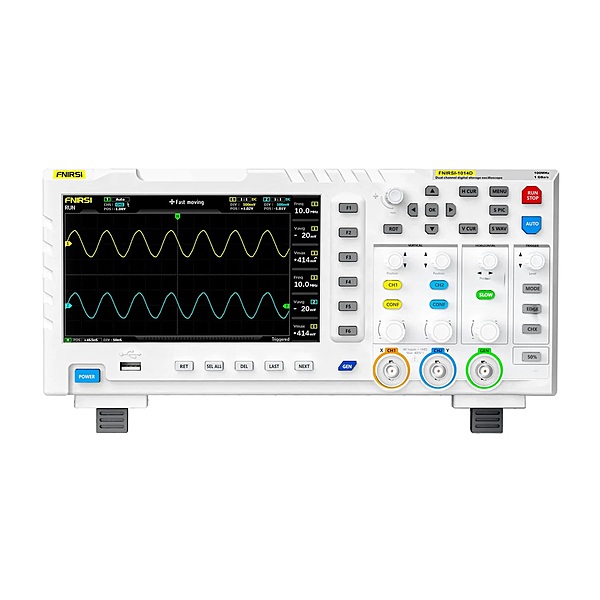

FNIRSI 1014D Digital Storage Oscilloscope
Note
** This image is for representational purposes only **
Info
For B2B orders, contact us on sales@blizzcartz.com
Quantity
Add to Cart
Product Details
Model Number:1014D
Brand:FNIRSI
Number of Channels:2
Material:High-quality ABS
Sampling Rate:1GSa/s
Analog Bandwidth:100MHz * 2
Vertical Sensitivity:50mV/div ~ 500V/div
Horizontal Timebase:5OS/div ~ 10nS/div
Storage Depth:240Kbit
Input Resistance:1MΩ
ADC Precision:8bits
Rise Time:< 3nS
Coupling:AC/DC
Trigger Modes:Auto / Normal / Single
Trigger Edge:Rising edge / Falling edge
External Trigger Voltage:0~40 V
Maximum Test Voltage:40V (lX probe), 400V (10X probe)
Waveform Manager:Support (1000 pic + 1000 waveform)
USB Export:Support
Capture Output:Support
Power Supply:5V 2A/3A/4A
Frequency Precision:±0.01%
Roll Mode:Support
One-button AUTO:Support
Display:7-inch 800*480 resolution color TFT LCD
Dimensions:310mm x 145mm x 70mm
Parameter:12 kinds in total
Generator:14 kinds in total

Signal Generator Specification:
Channels: 1
Waveform Type: 14 standard signals (@ 2.5vpp) + 1 customizable signal (Only the Frequency is adjustable)
Capture Output: Supprot
Sine Wave Max Frequency: 10MHz
Other Wave Max Frequency: 2MHz
Customize Signal Max Frequency: 1MHz
Frequency Resolution: 1Hz

Features:
  • Dual Channel
  • 2 in 1: Digital Oscilloscope + DDS Function Signal Generator
  • 1GSA/S sampling rate, 100MHz * 2 analog bandwidth.
  • Complete trigger function (single/normal/automatic).
  • Capable of storing up to 1000 customized chopping signals.
  • high-voltage protection module.
  • One-button AUTO and adaptive trigger (25%, 50%, 75%).
  • 7-inch 800*480 resolution high-definition LCD screen.
  • Powerful Waveform Picture Manager.
  • One-key Screenshot and Saving.
  • Cursor measurement function.
  • USB Picture Export
  • Lissajous Graphic Display & FFT Viewing.
  • Ideal for both periodic analog and aperiodic digital signals.
