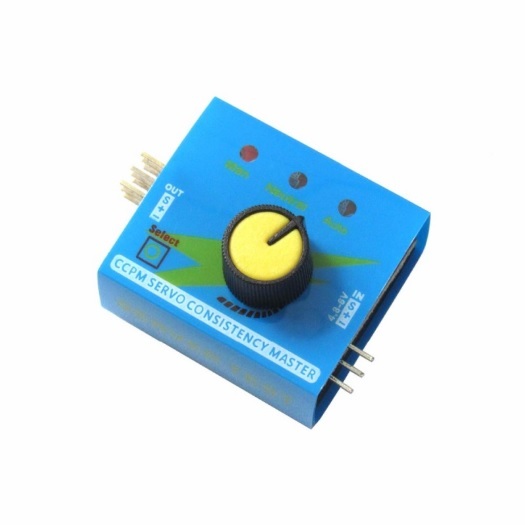

Digital Multi Servo Tester ESC CCPM Consistency Master Speed Control
Item Type: | Servo Tester |
Color: | Blue |
Operating Voltage: | 4.8V ~ 6V |
Output: | 15mA (5.0) |
Output Signal: | 1.5ms±0.5ms |
Knob Diameter: | 12mm |
Dimensions (L x W x H): | 36.5mm x 31mm x 22mm |
Weight: | 8gm |
Operation Modes:
Automatic mode:- Operates servos to their end point and back “window wiper” mode: Make the servo swing like window wipers in the biggest angle
Manual mode:- Turn the knob with different speed, check the reaction time
Neutral / Center mode:- Centers servos to their neutral position Ideal for when setting servos up in a model
Features:
Offer 3 modes to check servos or ESC.
The Manual Mode allows you to turn the knob to different speeds and check the reaction time.
The Neutral mode makes the servo go back to the neutral point.
The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible.
Connect to up to 3 servos simultaneously.
Connect up to 3 ESCs to test and compare their reaction time respectively.
Built with LED indicators.
