ER-TFT035-6
Non-returnable
₹1,250.00 ₹1,500.00

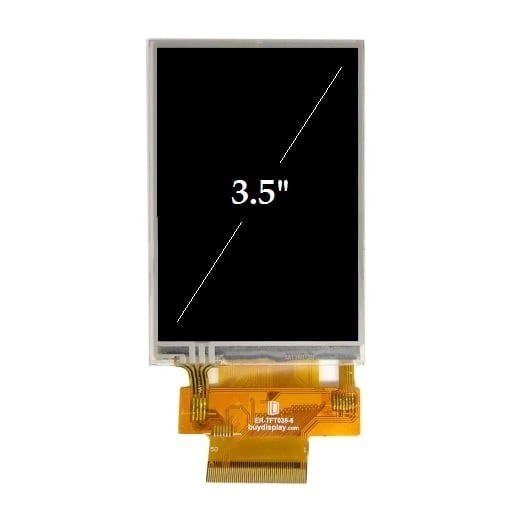

Serial SPI 3.5"TFT LCD Module in 320x480, ILI9488 Touch, EastRising Technology Co.,Limited
Product Details

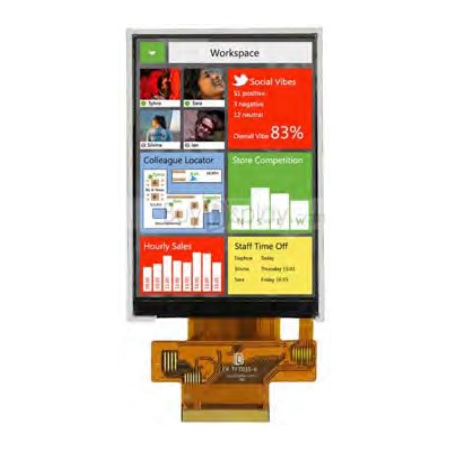

ER-TFT035-6 is 320x480 dots 3.5" color tft lcd module display with ILI9488 controller, superior display quality, super wide viewing angle. As a bonus, this display has a optional resistive touch panel and a optional capacitive touch panel with controller FT6236, so you can detect finger presses anywhere on the screen and doesn't require pressing down on the screen with a stylus and has nice glossy glass cover and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI. It can be used in any embedded systems, industrial device, security and hand-held equipment which requires display in high quality and colorful image. It supports 8080 8-bit, 9-bit, 16-bit, parallel, 3-wire, 4-wire serial spi interface. FPC with zif connector is easily to assemble or remove. Landscape mode is also available.
Specifications
Part Number: | ER-TFTM035-6 |
| Display Format: | 320x480 Dots |
| Interface: | 8080 8-bit Parallel, 8080 9-bit Parallel, 8080 16-bit Parallel, 8080 18-bit Parallel, 3-Wire Serial SPI, 4-Wire Serial SPI, RGB |
| IC or Equivalent: | ILI9488 |
| Appearance: | RGB |
| Diagonal Size: | 3.5” |
| Connection: | Pin Header, FFC-Connector |
| Outline Dimension: | 66.4(W)x96.7(H)mm |
| Visual Area: | 50.56x75.04mm |
| Active Area: | 48.96(W)x73.44(H)mm |
| Character Size: | No |
| Dot (Pixel) Size: | No |
| Dot (Pixel) Pitch: | 0.153x0.177mm |
| IC Package: | SMT |
| Display Type: | TFT-LCD Color |
| Touch Panel Optional: | Yes |
| Sunlight Readable: | No |
| Response Time (Typ): | 20ms |
| Contrast Ratio (Typ): | 500:01:00 |
| Colors: | 65K/262K |
| Viewing Direction: | 12:00 |
| Viewing Angle Range: | Left:70.0, Right:70.0, Up:70.0, Down:50.0 degree |
| Brightness (Typ): | 280cd/m2 |
| Backlight Color: | White Color |
| Backlight Current (Typ): | No |
| Power Supply (Typ): | 3.3V, 5V |
| Supply Current for LCM (Max): | 115mA (Vdd=3.3V) 130mA (Vdd=5V) |
| Operating Temperature: | -20℃~70℃ |
| Storage Temperature: | -30℃~80℃ |
