ESE-22MV21T
Non-returnable
₹29.68

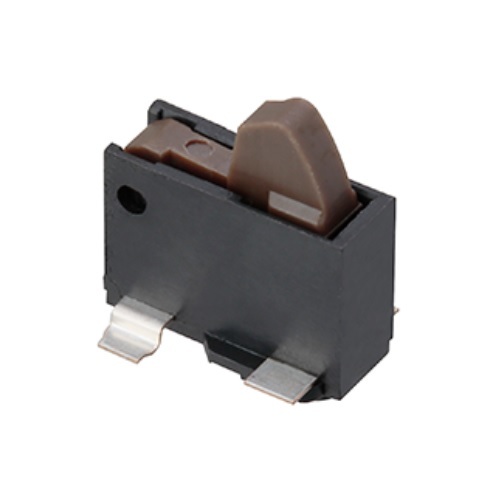

Switch SPST-NO Surface Mount, DETECTOR SWITCH, SPST, 10mA, 0.3N, Panasonic
Product Details
| Manufacturer Part Number: | ESE-22MV21T |
| Manufacturer: | Panasonic Electronic Components |
| Operation type: | Vertically, Horizontally |
| Direction of motion: | Right-side operation type |
| Rating: | 50 μA 3 V DC to 10 mA 5 V DC (Resistive load) |
| Contact Resistance: | 500 mΩ max. (Initial) |
| Insulation Resistance: | 100 MΩ min. (at 100 V DC for 1 minute) |
| Dielectric Withstanding Voltage: | 100 V AC (50 Hz or 60 Hz) for 1 minute |
| Operating Force: | 290 mN max. |
| External dimensions (WxDxH): | 5.7 x 1.9 x 4.1 mm |
| Mounting Height: | 4.1 mm |
| Positioning: | With Boss |
| Boss height: | 1.0 mm |
| Terminal type: | Straight terminal |
| Style: | For reflow soldering |
| Circuit type: | Normally open type (N.O.) |
| Poles and Throws: | 1-pole 1-throw |
| Travel Type: | Standard stroke type |
| Full stroke position: | 4.25 mm |
| Pushing distance: | 2.05 mm |
| Operating Life: | 50,000 cycles min. |
| Temperature Range: | -40℃ ~ 85℃ |
| Heat Resistance: | +85℃ for 96 hours |
| Low Temperature Resistance: | -40℃ for 96 hours |
| Humidity Resistance: | +40℃ 90 % to 95 % RH for 96 hours |
| Mounting Type: | Surface Mount |
