DS3231 RTC Module
Non-returnable
₹105.00
Out of stock

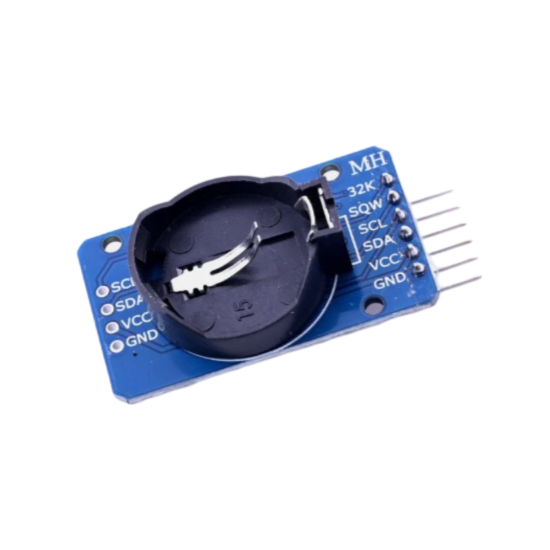

DS3231 RTC Module Precise Real Time Clock I2C AT24C32 without cell
Product Details
| Item Type: | RTC Module |
| Operating Voltage(VDC): | 2.7 to 5.5 |
| Voltage Supply for RTC: | 2.2 V ~ 5.5 V |
| Accuracy: | ±2ppm from 0°C to +40°C., ±3.5ppm from -40°C to +85°C. |
| I2C interface: | Fast (400kHz) I2C Interface. |
| Time and Date Format: | Time: HH: MM: SS (12/24 hr) Date Format: YY-MM-DD-dd |
| EEPROM: | AT24C32 32Kbit Serial I2C. |
| Operating Temperature: | -40°C to 85°C |
| Battery Holder: | 2032 Coin Battery |
Features:
- Two Time-of-Day Alarms.
- Digital Temp Sensor Output.
- Register for Aging Trim.
- DS 3231 RTC with 2032 Battery Holder.
- Highly Accurate RTC Completely Manages All Timekeeping Functions.
- Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year, with Leap-Year Compensation Valid Up to 2100.
- Configurable I2C device Address for AT24C32 using SMD jumpers on PCB (A0, A1, A2).
- Programmable Square-Wave Output Signal.
- Battery-Backup Input for Continuous Timekeeping.
- Low Power Operation Extends Battery-Backup Run Time.
- Voltage Supply for RTC: 2.2 V ~ 5.5 V
- Time and Date Format: Time: HH: MM: SS (12/24 hr).
- Date Format: YY-MM-DD-dd.
- Digital Temp Sensor Output: 10 bit, ±3°C Accuracy and 0.25C resolution.
Note: Battery not included
AT24C32 32K BIT EEPROM Data Sheet (PDF)
