TS667TP
Non-returnable
₹4.50

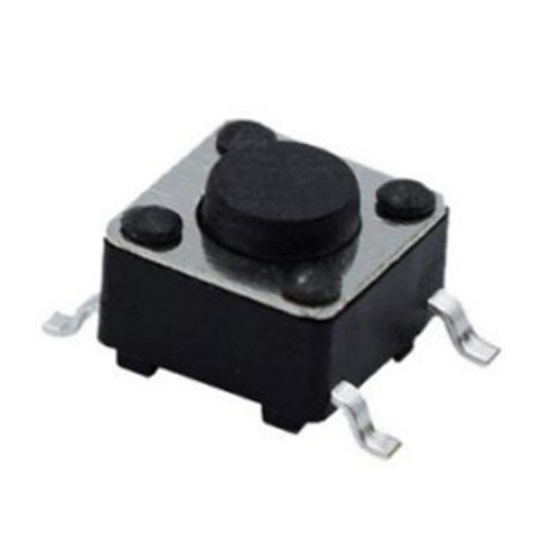

Tactile Switch 4 pin SPST Round Button Actuator - 6.0x6.0x7.0 mm, SHOU HAN
Product Details
| Manufacturer Part Number: | TS667TP |
| Manufacturer: | SHOU HAN |
| Current Rating: | 50 mA |
| Voltage Rating: | 12 V |
| Size (LxWxH): | 6.0x6.0x7.0 mm |
| Orientation: | Straight |
| Operating Force: | 250 gf |
| Action Type: | Momentary |
| Contact Resistance: | < 100 mOhm |
| Insulation Resistance: > | 50 mOhm (100V DC) |
| Switching Life: | 30000 Cycles |
| Operating Temperature: | -16°C to 60°C |
