DTS-04
Non-returnable
₹36.00

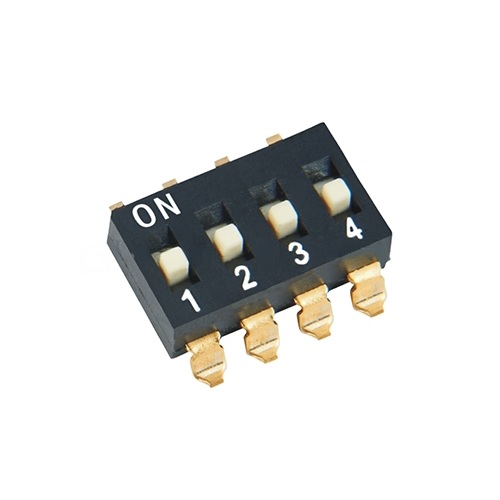

4Way SMD IC Type SPST 4 Position DIP Switch, Pitch=2.54mm, Wanda
Product Details
| Manufacturer Part Number: | DTS-04 |
| Manufacturer: | Wanda |
| Number of Position: | 4 |
| Pitch: | 2.54 mm |
| Operation Force: | 1000gf max. |
| Stroke: | 1.0 mm |
| Contact Resistance: | 100 mΩmax. at initial |
| Non-Switching Rating: | 100 mA, 50 VDC |
| Switching Rating: | 25 mA, 24 VDC |
| Operation Temperature: | -20◦C ~ 70◦C |
| Electrical Life: | 2000 Operations per switch-24 VDC, 25 mA |
| Circuit: | Single pole single throw (SPST) |
| Mechanical Life: | 2000 operations per switch |
