MX004GF-113B- 060LX
Non-returnable
₹34.00

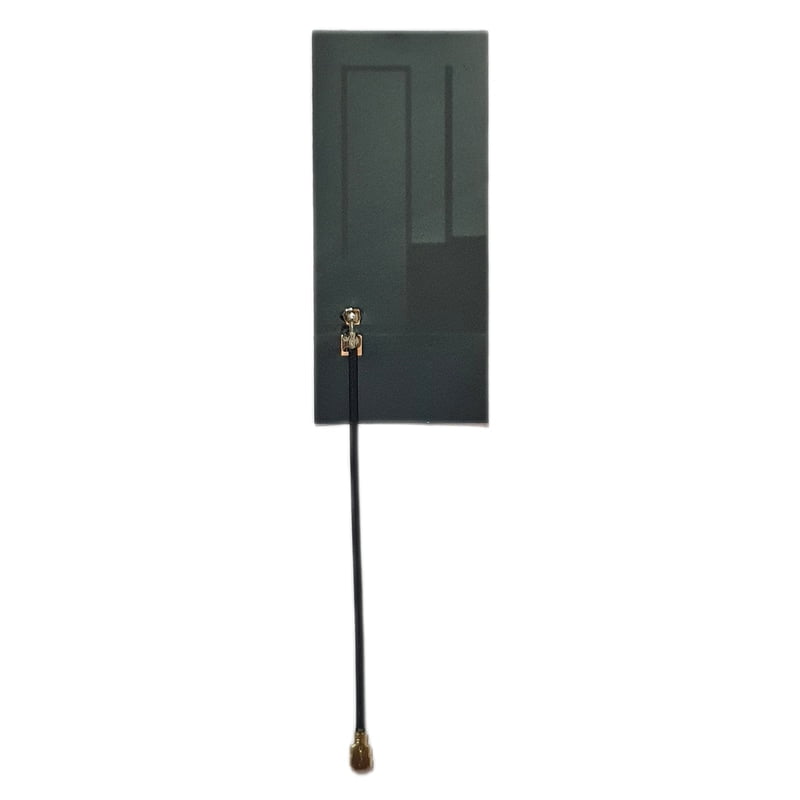

4G LTE FPC Antenna Wide Band Cellular 52x24mm 6cm Cable U.FL Connector
Product Details
The product is a compact 4G LTE FPC antenna measuring 52x24mm with a 6cm cable. It provides reliable and stable connectivity for 4G LTE communication applications. The antenna comes with a 3M adhesive backing, making it simple to attach to your project.
| Brand: | Generic |
| Frequency Band: | 700-2700 MHz |
| Impedance: | 50 Ohm |
| V.S.W.R: | < = 2.0@700-2700MHz |
| Return Loss: | -10 dB Max |
| Radiation: | Omni-directional |
| Gain (Peak): | 6dBi |
| Cable Loss: | 2 dB / m Max |
| Admitted Power: | 1 W |
| Material: | Radiator FPC |
| Antenna Size: | 52x24 mm |
| Cable Length: | 60 mm |
| Cable Type: | 1.13 coaxial cable |
| Connector Style: | IPEX (u.FL equivalent) |
| Polarization: | Linear, Vertical |
| Mounting: | 3M sticker |
| Operating Temperature: | -10C ~ 60C |
