PDTC143ZT,215
Non-returnable
₹2.10

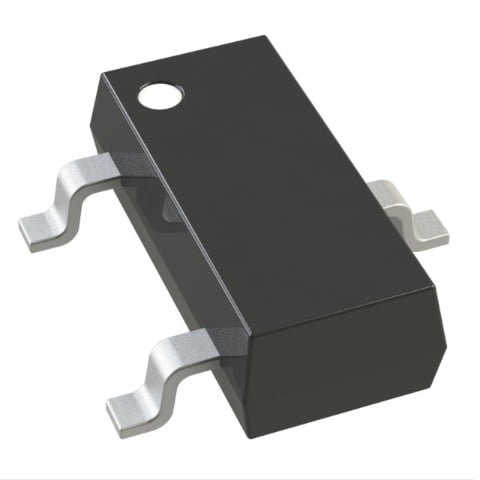

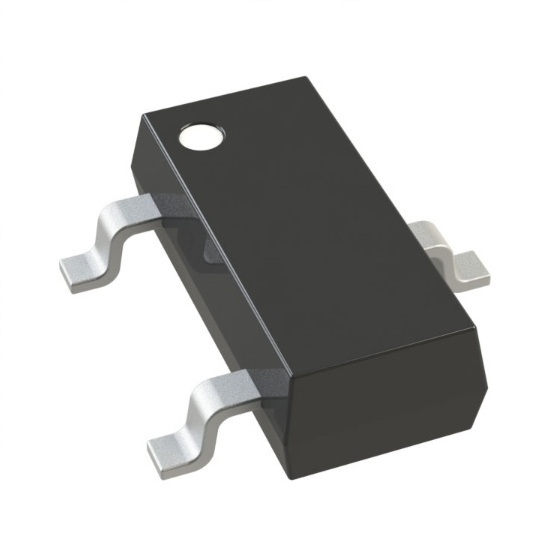

Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 230 MHz 250 mW Surface Mount TO-236AB, Nexperia
Product Details
| Manufacturer Part Number: | PDTC143ZT,215 |
| Manufacturer: | Nexperia |
| Current - Collector (Ic) (Max): | 100 mA |
| Voltage - Collector Emitter Breakdown (Max): | 50 V |
| Resistor - Base (R1): | 4.7 kOhms |
| Resistor - Emitter Base (R2): | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic: | 100mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max): | 1µA |
| Frequency - Transition: | 230 MHz |
| Power - Max: | 250 mW |
| Grade: | Automotive |
| Qualification: | AEC-Q100 |
| Mounting Type: | Surface Mount |
| Package: | TO-236AB |
