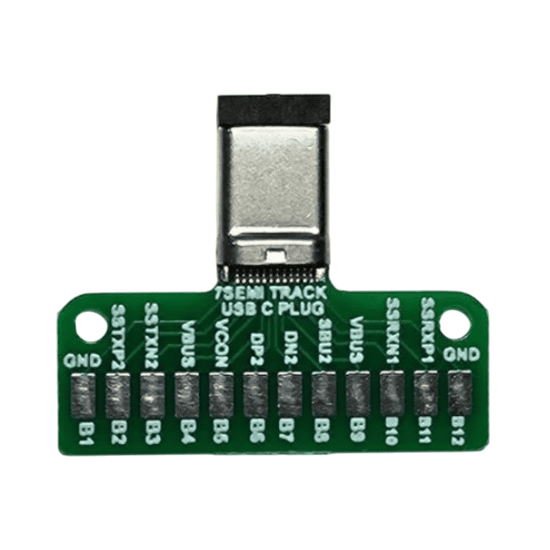

USB 3.1 Type-C Male Breakout Board 24-Pin
A compact breakout board featuring a USB 3.1 Type-C male connector with 24 pins, designed for easy integration into electronics projects. It eliminates the need for soldering tiny SMD pads, making it ideal for prototyping, testing, and DIY applications.
Connector Type: | USB 3.1 Type-C Male (Straight Plug) |
Pin Count: | 24 pins (12 on each side of the PCB) |
Orientation: | Vertical |
Mounting Type: | Through-hole (no SMD soldering required) |
Pin Pitch: | 2.54 mm (0.1 inch) |
Power Delivery: | Supports up to 100W (depending on upstream device) |
Data Transfer Rate: | Up to 10 Gbps (USB 3.1 Gen 2) |
Durability: | Rated for 10,000 mating cycles |
Mounting Holes: | Included for secure attachment |
Dimensions: | 3.3cm x 2.7cm x 0.3 cm |
Weight: | 2 grams Approximately |
Features:
Connectivity without effort: Adding a USB-C port to your projects is simple.
Simple Orientation: Suitable for a range of PCB designs.
Adaptable Design: Perfect for mount-free applications.
Dependable Performance: Assures USB-C connections are steady and effective.
Superior Construction: Sturdy and long-lasting.
