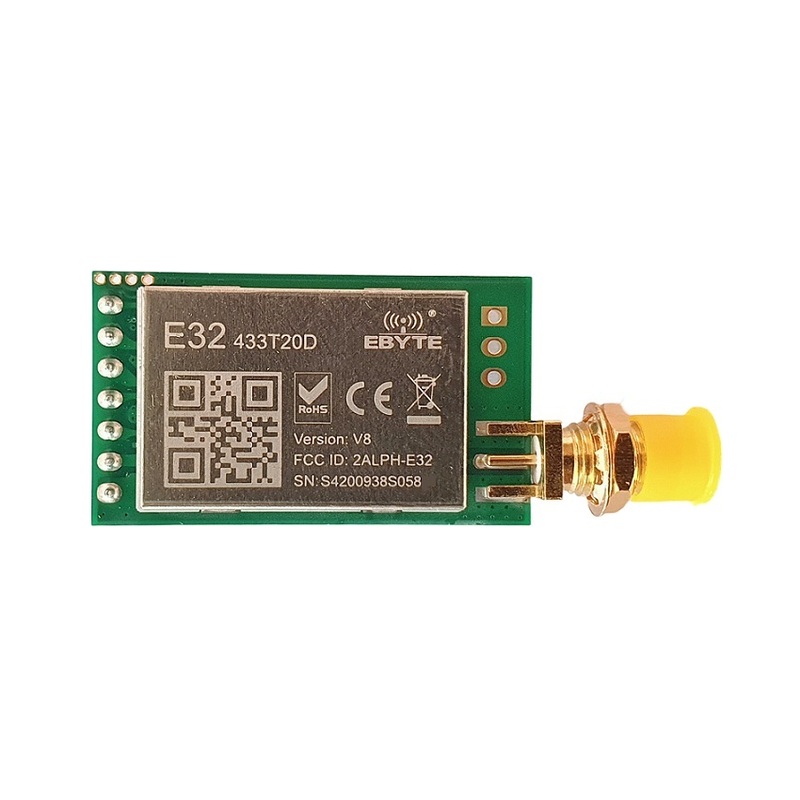

E32-433T20D-V8
Manufacturer Part Number: | E32-433T20D-V8 |
Manufacturer: | EBYTE |
Chip: | SX1278 |
Frequency： | 410 ~ 441 MHz |
Power： | 19 ~ 20 dBm |
Distance： | 3.0 km |
Interface： | UART |
Operating Temperature Range: | -40°C ~ 85°C |
Features:
Support advanced LoRa modulation , with the advantage of long-distance anti-interference
Under ideal conditions, the communication distance can reach 3km, and the transmission distance is better than that of traditional G FSK
Support fixed-point transmission, broadcast transmission, channel monitoring
Support air wake-up (ultra-low power consumption), suitable for battery applications
Support FEC forward error correction to improve communication stability
maximum transmit power is 100mW, and the software is multi-level adjustable
Support global license-free ISM 433MHz frequency band
Support data transmission rate of 0.3k～19.2kbps
Support 2.3 ~ 5.5 V power supply, more than 3.3V power supply can ensure the best performance
Industrial-grade standard design, support long-term use at -40 ~ + 85 ℃
SMA-K interface for easy connection of coaxial cable or external antenna
Applications:
Home security alarm and remote keyless entry
Smart home and industrial sensors
Wireless alarm security system
Building automation solutions
Wireless industrial-grade remote control
Health care products
Advanced Meter Reading Architecture(AMI)
Automotive industry applications
