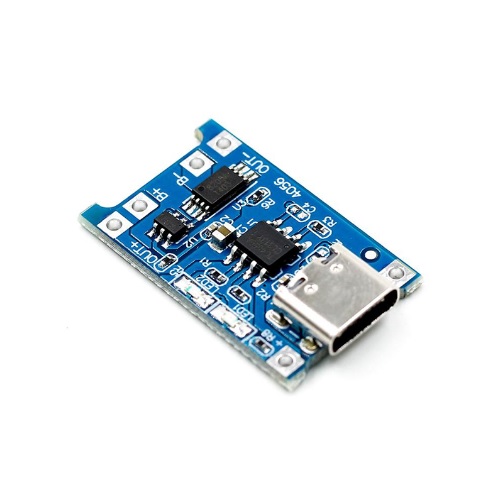

TP4056 1A Li-ion lithium Battery Charging Module Type C With Current Protection
Non-returnable
₹14.50
TP4056 1A Li-ion lithium Battery Charging Module Type C With Current Protection
Product Details
| Input Interface: | Type C |
| Full Charge Voltage: | 4.2 V |
| Over-Current Protection: | 3 A |
| Under-Voltage Protection: | 2.5 V |
| Input Voltage: | 4.5 V to 5.5 V |
| Power Rating: | 4.2 W |
| Charging mode: | Linear charging |
| Current: | 1A adjustable. |
| Charge precision: | 1.5%. |
| Operating Temperature: | -10°C ~ 85°C |
Using the module:
- Connect Type C cable for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module
- Connect cell to charge to B+/B- pads on the right-hand side of the module.
- A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side
- Important! Disconnect load when charging
- The red LED indicates charging in progress, the green LED indicates charging has finished.
- Never charge your battery at a rate greater than 1C.
Note:
- Ampere meter can only be connected to a 5v input end of the module.
- It is better than the charging current is 37% of the battery capacity. If you charge the battery of 1000mAh, a current of 400mAh is enough.
- The connection wire should not be too thick.
- Make sure the connect point is good.
- If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-subtract the charging current to avoid burn damage to the chip.
- NO Reverse polarity.
Features:
- LED indicator: Red - charging, Green - fully charged.
- Current Protection: Yes
- Inversed polarity: NO.
- Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
- Fully machinery automated processing, all patch parts manufacturing.
