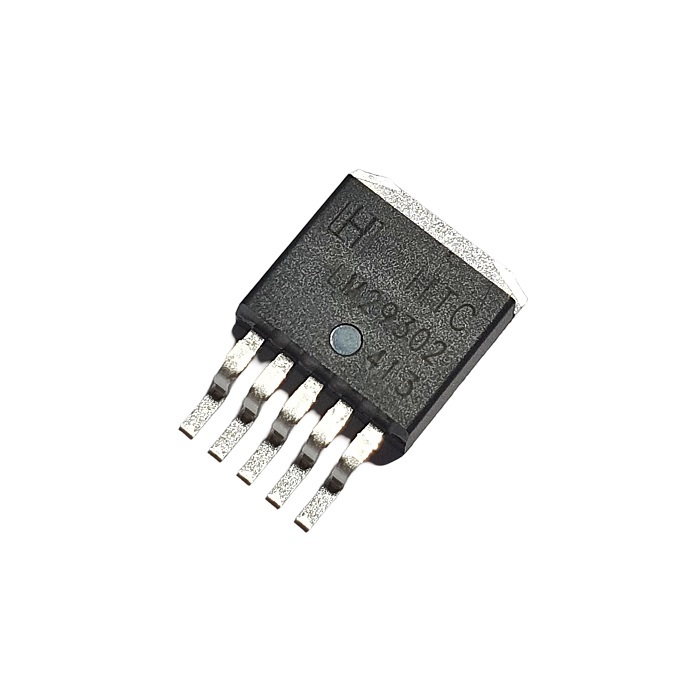

LM29302R
Non-returnable
₹136.00
3A Adjustable Positive electrode 60V TO-263-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators, HTC Korea
Product Details
| Manufacturer Part Number: | LM29302R |
| Manufacturer: | HTC Korea |
| Input Voltage Range: | -20 to 60V |
| Output Load Current: | 3A |
| Output Voltage Type: | Adjustable |
| Current Limit: | 4.5 ~ 5A |
| Dropout Voltage: | 175 ~ 600 mV |
| Ground Pin Current Dropout: | 1.7mA |
| Output Leakage Current: | 2uA |
| Operating Temperature: | -40°C to 125°C |
| Mounting Type: | SMD/SMT |
| Package/Case: | TO-263-5 |
Features
- High Current Capability 3.0A
- Low Dropout Voltage 370mV (Typical)
- Low Ground Current
- Accurate 1% Guaranteed Initial Tolerance
- Extremely Fast Transient Response
- Reverse-Battery and "Load Dump" Protection
- Zero-Current Shutdown Mode (5-Pin Version)
- Error Flag Signals Output out-of-Regulation (LM29301)
- Also Characterized for Smaller Loads with Industry Leading Performance specifications
- Fixed Voltage and Adjustable Versions
- Moisture Sensitivity Level 3
