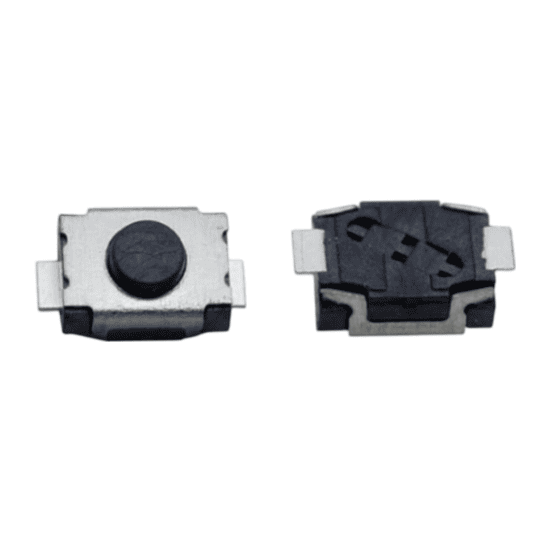

3x4x2mm SMD Tactile Switch
Non-returnable
₹2.50
3x4x2mm SMD Tactile Switch
Product Details
| Manufacturer Part Number: | 3 x 4 x 2mm SMD Tactile Switch |
| Size (LxWxH): | 3.0 x 4.0 x 2.0 mm |
| Number of Pins: | 2 |
| Contact Resistance: | < 500 mOhm |
| Insulation Resistance: | > 50 mOhm (100V DC) |
| Withstand Voltage: | 250V AC (1min) |
| Current Rating: | 200 mA |
| Switching Life: | 100000 Cycles |
| Mount: | Surface Mount |
| Orientation: | Straight |
| Voltage Rating: | 12 V |
| Operating Temperature: | -40°C to 85°C |
