ER-EPD026A1-1R-5103-5108-5109
Non-returnable
₹1,800.00
Red 2.6" inch e-Paper Display w/Raspberry Pi HAT,e-Ink 296x152, EastRising Technology
Product Details

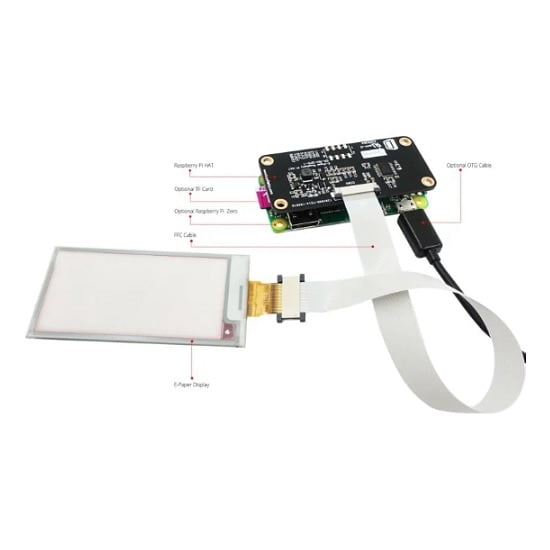

ER-EPD026A1-1R-5103-5108-5109 is 2.6 inch e-paper display panel with HAT, FFC and ZIF connector for raspberry pi or raspberry pi Zero. It comes with SSD1675A controller,152x296 resolution, red/white/black color, compact size, high contrast, sunlight readable.
| Manufacturer Part Number: | ER-EPD026A1-1R-5103-5108-5109 |
| Manufacturer: | EastRising Technology |
| Display Format: | 152 x 296 Dots |
| Interface: | 3-wire SPI, 4-wire SPI |
| IC or Equivalent: | SSD1675 |
| Appearance: | Red+Black on White |
| Diagonal Size: | 2.6“ |
| Connection: | Plug-in FPC |
| Outline Dimension: | 36.30(W) x 71.82(H) x 1.18(T)mm |
| Visual Area: | 30.70 x 60.09mm |
| Active Area: | 30.70(W) x 60.09(H)mm |
| Dot (Pixel) Pitch: | 0.203 x 0.202mm |
| IC Package: | COG |
| Display Type: | E-Paper |
| Touch Panel Optional: | No |
| Sunlight Readable: | Yes |
| Viewing Angle Range: | Left:85.0, Right:85.0, Up:85.0, Down:85.0 degree |
| Brightness (Typ): | 80cd/m2 |
| Power Supply (Typ): | 3V |
| Operating Temperature: | 0℃~40℃ |
